Typical Type W Formlok Metal Deck

Materials

Elements

About this detail

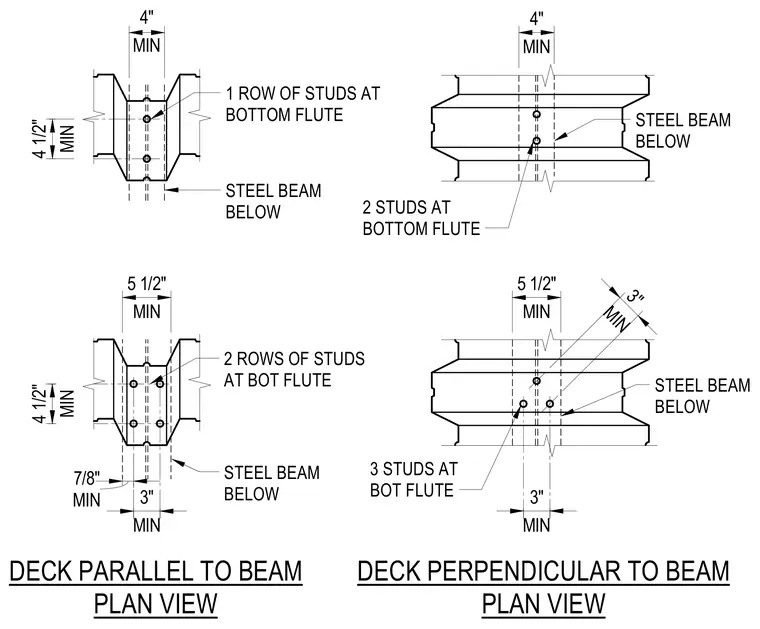

Plan views illustrate shear stud placements in Type W Formlok metal deck relative to the supporting steel beams below. The details specify layout dimensions including minimum clearances such as 4 inches, 4-1/2 inches, 5-1/2 inches, 3 inches, and 7/8 inches for stud positioning. Configurations include single rows, double rows, and clustered stud arrangements at the bottom flute of the metal deck. Separate plan orientations cover deck running parallel to the beam and deck running perpendicular to the beam.
