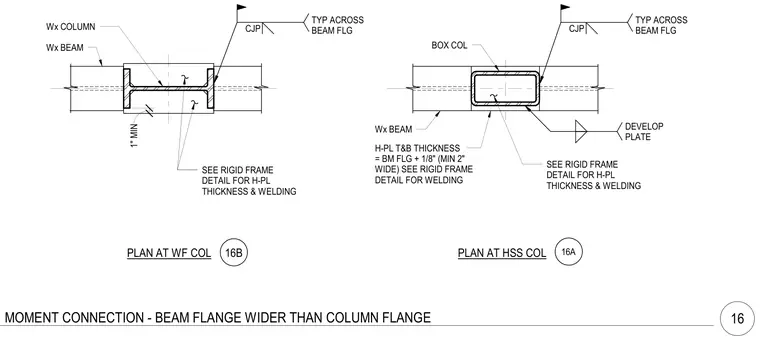

These plan details show steel moment connections for wide flange beams framing into wide flange and hollow structural section box columns where the beam flanges exceed the width of the column. Horizontal plates are welded across the top and bottom of the beam flanges, with thicknesses sized to the beam flange plus one-eighth inch and a minimum width of two inches. Complete joint penetration welds connect the plates and beam flanges to the column sections as specified in the rigid frame details. A minimum one-inch clearance is maintained at the column web conditions.
Wx COLUMN Wx BEAM SEE RIGID FRAME DETAIL FOR H-PL THICKNESS & WELDING H-PL T&B THICKNESS = BM FLG + 1/8" (MIN 2" WIDE) SEE RIGID FRAME DETAIL FOR WELDING BOX COL Wx BEAM TYP ACROSS BEAM FLG SEE RIGID FRAME DETAIL FOR H-PL THICKNESS & WELDING DEVELOP PLATE CJP TYP ACROSS BEAM FLG CJP 1" MIN PLAN AT HSS COL PLAN AT WF COL 16B 16A MOMENT CONNECTION - BEAM FLANGE WIDER THAN COLUMN FLANGE 16
