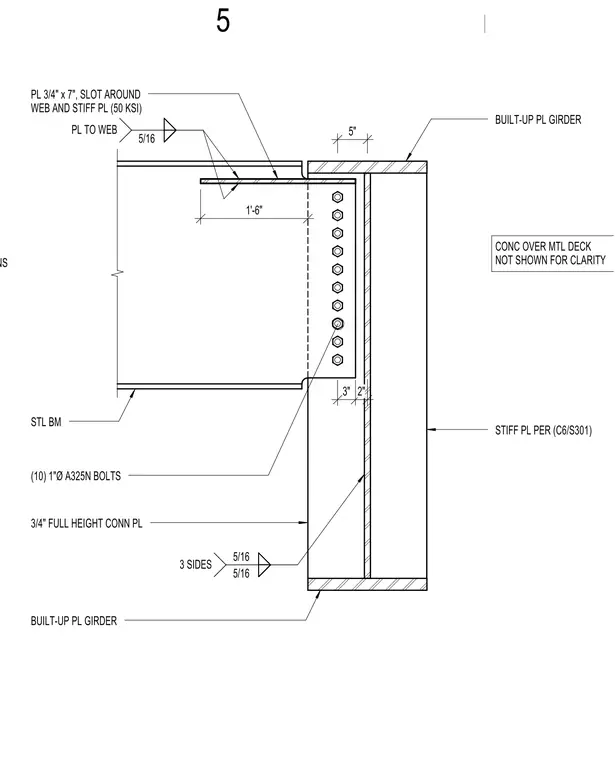

This structural steel connection details a steel beam framing into a built-up plate girder. The connection utilizes a 3/4-inch full-height connection plate welded to the girder web with five-sixteenth-inch welds on three sides with 1-inch returns. Ten 1-inch diameter A325N bolts fasten the beam web to the connection plate. A 3/4-inch by 7-inch plate slotted around the web and stiffener plate with a 50 KSI yield strength is welded to the top flange with five-sixteenth-inch welds. Stiffener plates are provided per detail C6/S301. Concrete over metal deck is omitted from the view for clarity.
W/ 1" RETURNS BUILT-UP PL GIRDER STL BM 5/16 5/16 3 SIDES 3" 2" 1'-6" 5" 3/4" FULL HEIGHT CONN PL (10) 1"Ø A325N BOLTS 5/16 PL TO WEB PL 3/4" x 7", SLOT AROUND WEB AND STIFF PL (50 KSI) BUILT-UP PL GIRDER CONC OVER MTL DECK NOT SHOWN FOR CLARITY STIFF PL PER (C6/S301) 5
