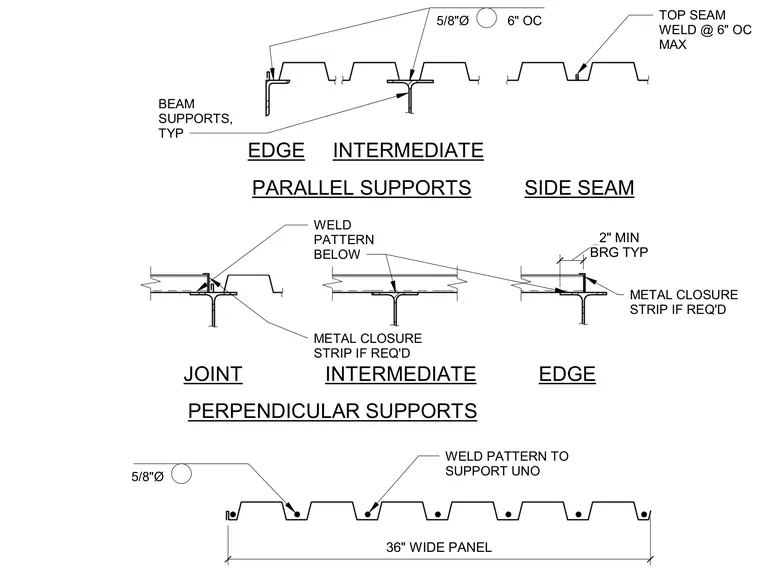

Metal roof deck panels bear on structural steel supports, utilizing a thirty-six-inch wide panel with a two-inch minimum bearing length typical. Side seams and top seams are secured using weld patterns at six inches on center maximum, including five-eighths-inch diameter welds and optional metal closure strips as required.
BEAM SUPPORTS, TYP TOP SEAM WELD @ 6" OC MAX WELD PATTERN BELOW METAL CLOSURE STRIP IF REQ'D METAL CLOSURE STRIP IF REQ'D WELD PATTERN TO SUPPORT UNO BRG TYP 2" MIN 36" WIDE PANEL 5/8"Ø 5/8"Ø 6" OC EDGE INTERMEDIATE PARALLEL SUPPORTS SIDE SEAM JOINT INTERMEDIATE EDGE PERPENDICULAR SUPPORTS
