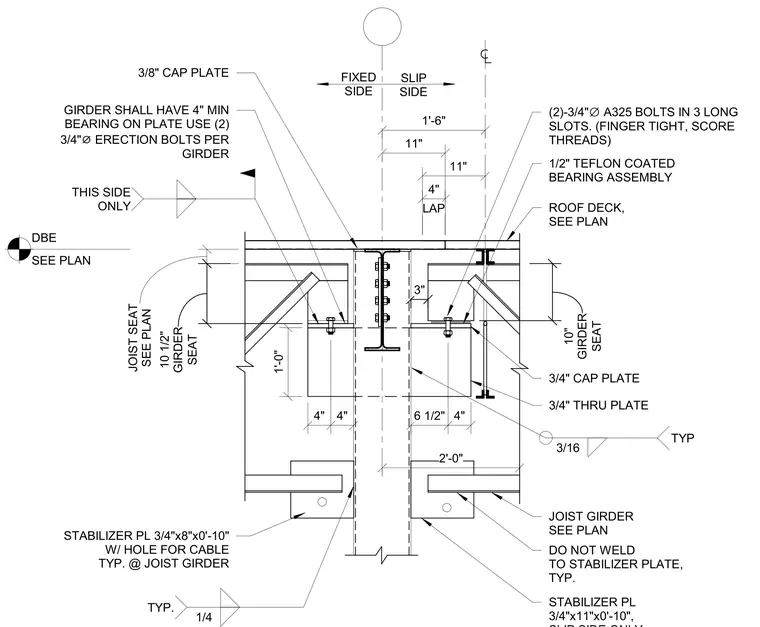

A joist girder rests on a bearing plate system divided into a fixed side and a slip side. The slip side incorporates a one-half inch Teflon-coated bearing assembly secured with two three-quarter inch diameter A325 bolts installed in three-inch long slots, tightened finger-tight with scored threads to allow for thermal movement. A three-eighths inch cap plate sits atop the girder, requiring a minimum four-inch bearing on the plate. The connection features a three-quarter inch thick thru-plate and stabilizer plates measuring three-quarters by eight inches by ten inches on the slip side and three-quarters by eleven inches by ten inches on the fixed side. All stabilizer plates remain unwelded to the girder to accommodate movement, with typical three-sixteenths inch and one-quarter inch fillet welds used elsewhere in the assembly.
Text on the drawing
DETAIL BOOK REF. SHEET: S2.10A DATE: 03/15/2024 JOIST GIRDER SEE PLAN (2)-3/4" ∅ A325 BOLTS IN 3 LONG SLOTS. (FINGER TIGHT, SCORE THREADS) 1/2" TEFLON COATED BEARING ASSEMBLY DO NOT WELD TO STABILIZER PLATE, TYP. 3/8" CAP PLATE ROOF DECK, SEE PLAN THIS SIDE ONLY 3/16 TYP 1'-6" SLIP SIDE STABILIZER PL 3/4"x8"x0'-10" W/ HOLE FOR CABLE TYP. @ JOIST GIRDER 1/4 TYP. JOIST SEAT SEE PLAN DBE SEE PLAN FIXED SIDE STABILIZER PL 3/4"x11"x0'-10", SLIP SIDE ONLY 4" 4" 6 1/2" 4" 11" 11" LAP 4" SEAT 10 1/2" GIRDER 3/4" THRU PLATE 3/4" CAP PLATE 3" GIRDER SHALL HAVE 4" MIN BEARING ON PLATE USE (2) 3/4" ⌀ ERECTION BOLTS PER GIRDER SEAT 10" GIRDER 1'-0" 2'-0"
