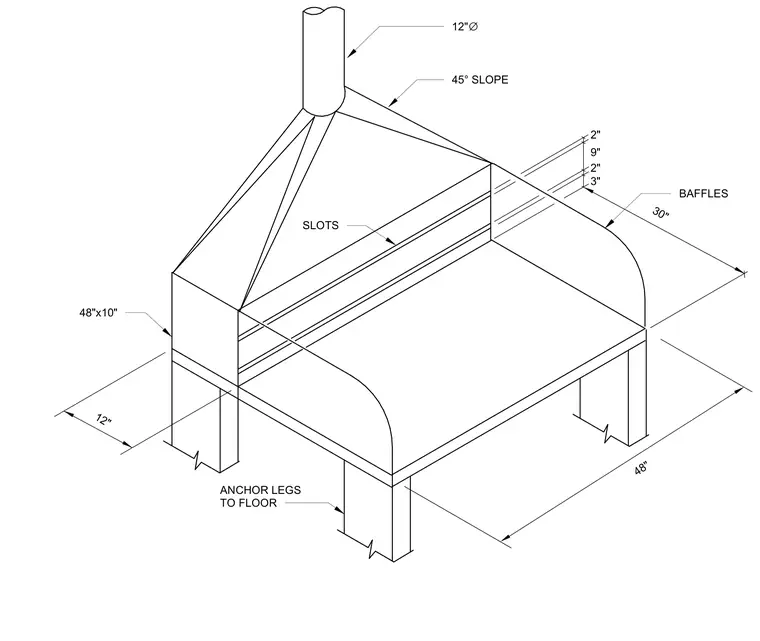

A bench-mounted exhaust hood features a forty-five-degree sloped canopy connecting to a twelve-inch diameter duct. The hood measures forty-eight inches wide by thirty inches deep, incorporating internal baffles and slotted openings spaced with specific vertical dimensions of two, nine, two, and three inches. The forty-eight-by-ten-inch housing is supported by structural legs anchored to the floor.
48" 48"x10" 3" 2" 9" 2" BAFFLES 45° SLOPE 12" ∅ SLOTS 30" ANCHOR LEGS TO FLOOR 12"
