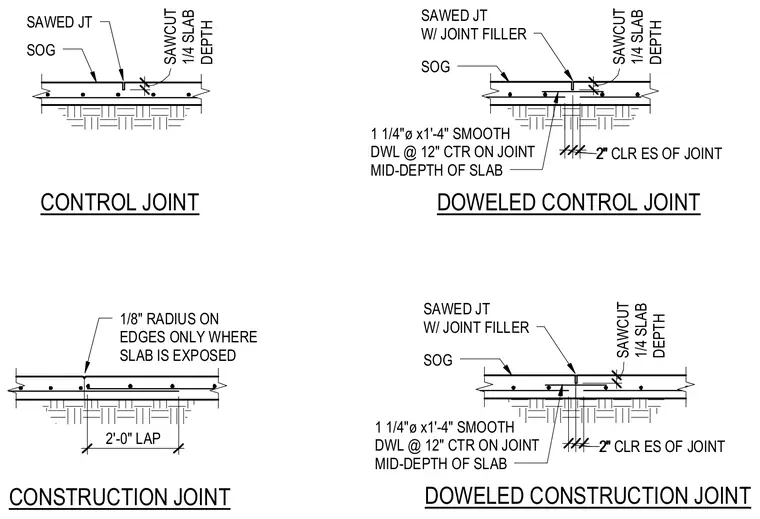

Concrete slab on grade joints including control joints, doweled control joints, construction joints, and doweled construction joints bearing on subgrade. Sawcuts extend to one-fourth the slab depth with joint filler installed at sawed joints and a one-eighth inch radius on edges only where the slab is exposed. Doweled joints feature one and one-quarter inch diameter by one foot four inch smooth dowels spaced at twelve inches on center at the mid-depth of the slab with two inch clearance from the edge of the joint. Construction joints incorporate a two-foot zero-inch rebar lap splice.
SOG SAWED JT 1/8" RADIUS ON EDGES ONLY WHERE SLAB IS EXPOSED CONTROL JOINT CONSTRUCTION JOINT 2" 24" SAWCUT 1/4 SLAB DEPTH 2'-0" LAP SOG SAWED JT W/ JOINT FILLER DOWELED CONTROL JOINT DOWELED CONSTRUCTION JOINT 2" SAWCUT 1/4 SLAB DEPTH 2"2" CLR ES OF JOINT 1 1/4"ø x1'-4" SMOOTH DWL @ 12" CTR ON JOINT MID-DEPTH OF SLAB SAWCUT 1/4 SLAB DEPTH 2"2" CLR ES OF JOINT 2" 1 1/4"ø x1'-4" SMOOTH DWL @ 12" CTR ON JOINT MID-DEPTH OF SLAB SOG SAWED JT W/ JOINT FILLER
