Structural · S-AAT2R

Louver and Insulated Metal Panel Support Detail

Materials

Steel Metal (misc.)

Elements

Columns Beams Facades / Cladding Floors / Slabs Arches Anchors / Embeds Connections / Plates

Connections

Rebar Splice / Development Embed Plate

About this detail

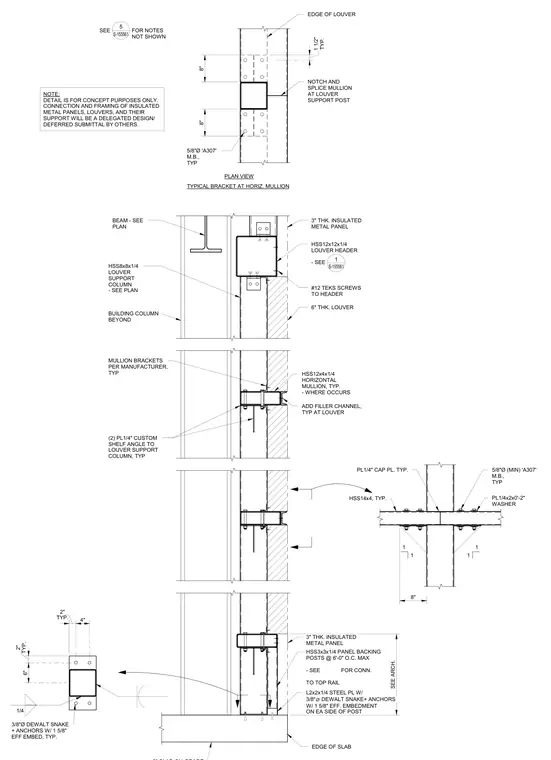

Structural support connection for a louver and insulated metal panel system mounted to a structural steel framing network. An HSS12x12x1/4 louver header connects to an HSS8x8x1/4 louver support column, with three-inch thick insulated metal panels secured via number twelve TEKS screws. Two quarter-inch custom shelf angles attach horizontal HSS12x4x1/4 mullions to the support column, utilizing five-eighth-inch diameter A307 machine bolts and quarter-inch washer plates. Panel backing posts formed from HSS3x3x1/4 sections are anchored at six-foot centers maximum using three-eighth-inch diameter DeWalt Snake+ anchors with one and five-eighth-inch effective embedment. A note indicates that connection and framing are for concept purposes only and represent a delegated design and deferred submittal by others.
