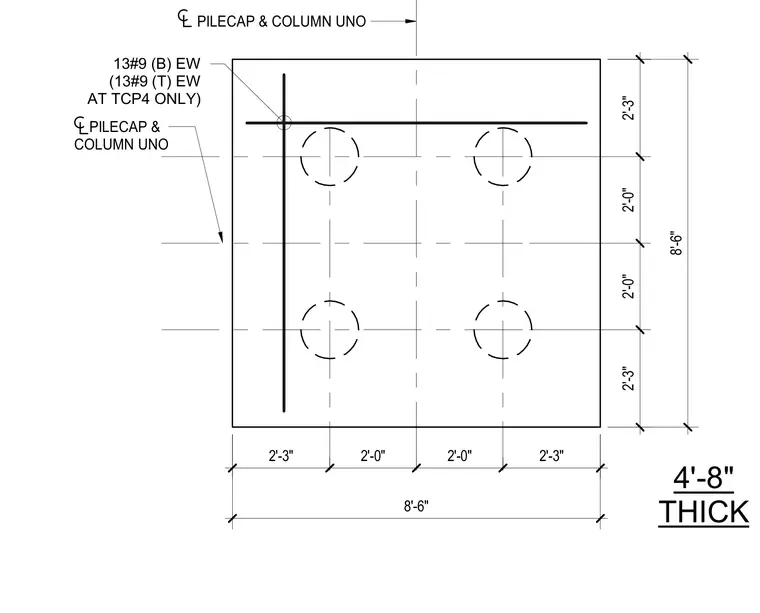

This structural plan detail shows a four-pile concrete pile cap measuring eight feet six inches square by four feet eight inches thick. The bottom reinforcing layout consists of number nine bars each way typically, with number nine top bars each way at pile cap four only. Centerlines establish the alignment of the pile cap and column assembly, accompanied by dimensioned offsets for the pile locations.
4'-8" THICK PILECAP & COLUMN UNO 13#9 (B) EW (13#9 (T) EW AT TCP4 ONLY) PILECAP & COLUMN UNO 2'-3" 2'-0" 2'-0" 2'-3" 8'-6" 2'-3" 2'-0" 2'-0" 2'-3" 8'-6"
