The roof opening assembly utilizes L5x3x1/4 angle framing connected to primary steel beams sized per plans, with three-sixteenth-inch typical fillet welds. An alternative Option B connection trims the vertical leg of the angle at the joist. The roof deck is welded to the angle framing in accordance with general project notes. Additional conditions direct the user to detail D3/S521 for openings less than twelve inches in diameter and to rooftop mechanical unit support details where applicable.

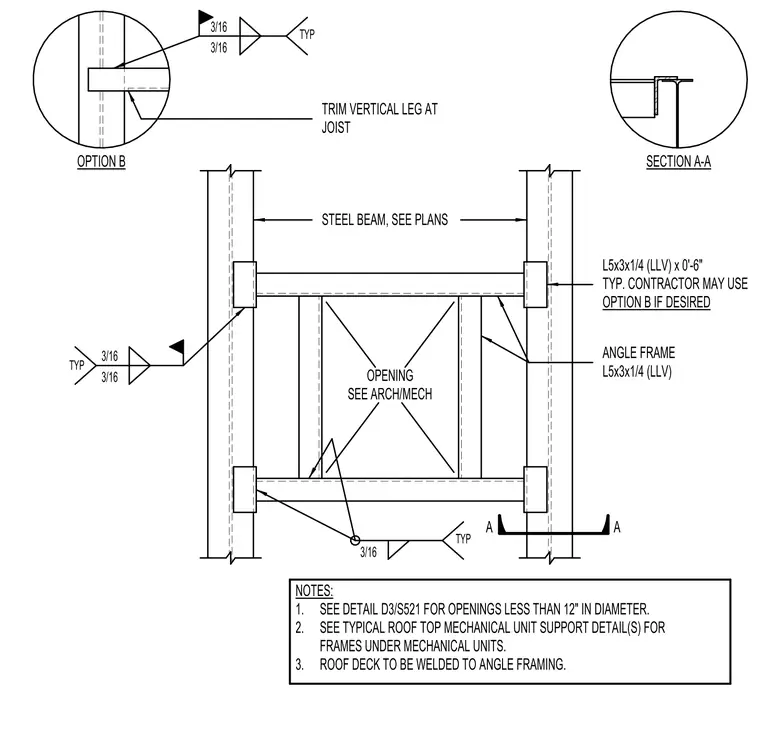

OPENING SEE ARCH/MECH OPTION B NOTES: 1. SEE DETAIL D3/S521 FOR OPENINGS LESS THAN 12" IN DIAMETER. 2. 3. SEE TYPICAL ROOF TOP MECHANICAL UNIT SUPPORT DETAIL(S) FOR FRAMES UNDER MECHANICAL UNITS. ROOF DECK TO BE WELDED TO ANGLE FRAMING. TRIM VERTICAL LEG AT JOIST STEEL BEAM, SEE PLANS L5x3x1/4 (LLV) x 0'-6" TYP. CONTRACTOR MAY USE OPTION B IF DESIRED ANGLE FRAME L5x3x1/4 (LLV) 3/16 TYP TYP 3/16 3/16 3/16 TYP 3/16 A A SECTION A-A
