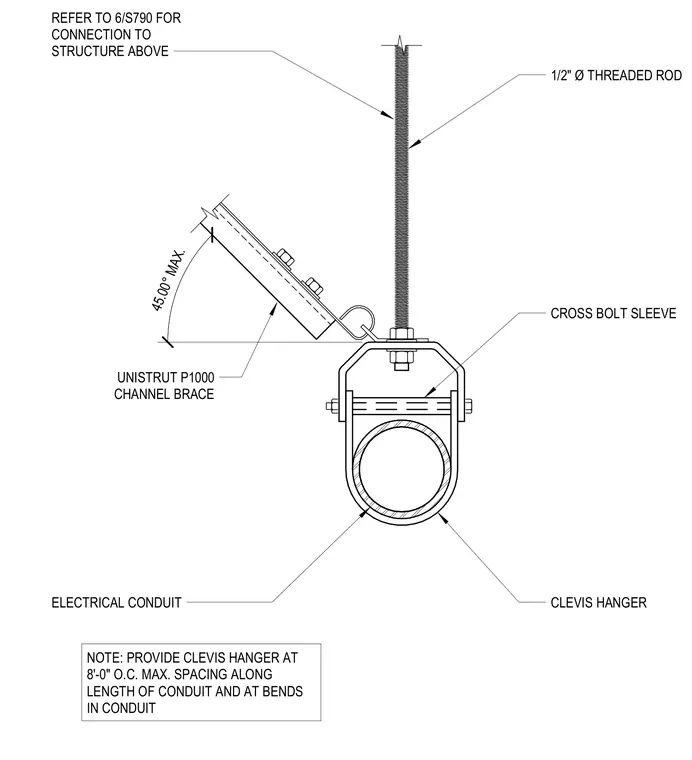

An electrical conduit is suspended from a structural overhead attachment by a one-half-inch diameter threaded rod connected to a clevis hanger. The conduit is secured inside the hanger with a cross bolt sleeve. A Unistrut P1000 channel brace attaches to the hanger assembly at a maximum angle of forty-five degrees to provide lateral support. Clevis hangers are spaced at a maximum of eight feet on center along the conduit length and at all conduit bends.
CLEVIS HANGER ELECTRICAL CONDUIT CROSS BOLT SLEEVE 1/2" Ø THREADED ROD REFER TO 6/S790 FOR CONNECTION TO STRUCTURE ABOVE NOTE: PROVIDE CLEVIS HANGER AT 8'-0" O.C. MAX. SPACING ALONG LENGTH OF CONDUIT AND AT BENDS IN CONDUIT UNISTRUT P1000 CHANNEL BRACE 45.00° MAX.
