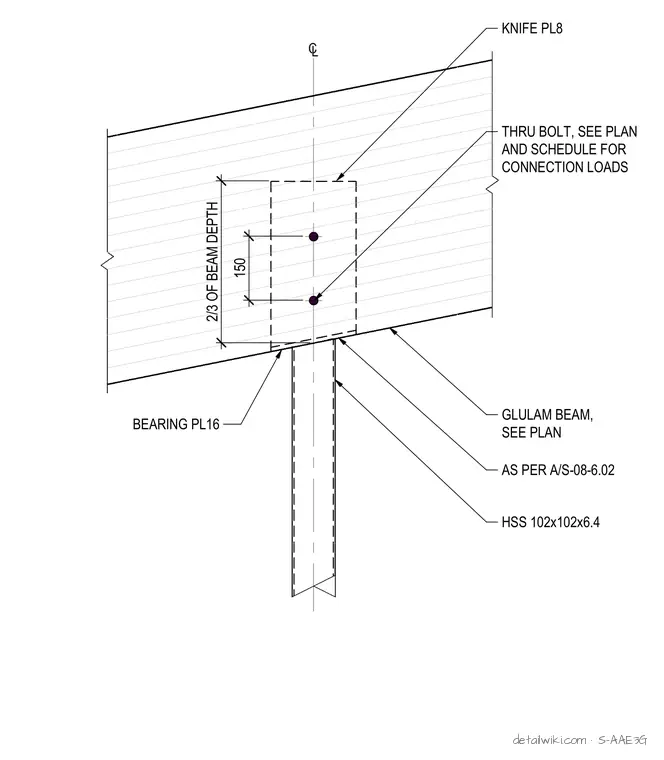

S-AAE3G — Typical Glulam To Column Connection

Structural · S-AAE3G

Typical Glulam To Column Connection

Units: metric
Sheet: S-OB-5.51
Discipline: Structural

Materials

Steel Timber / Wood

Elements

Beams Columns Connections / Plates

Connections

Beam-to-Column Bolted Connection HSS Connection Timber / Mass-Timber Connection

Text on the drawing

HSS 102x102x6.4 GLULAM BEAM, SEE PLAN 150 AS PER A/S-08-6.02 2/3 OF BEAM DEPTH BEARING PL16 KNIFE PL8 THRU BOLT, SEE PLAN AND SCHEDULE FOR CONNECTION LOADS

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
