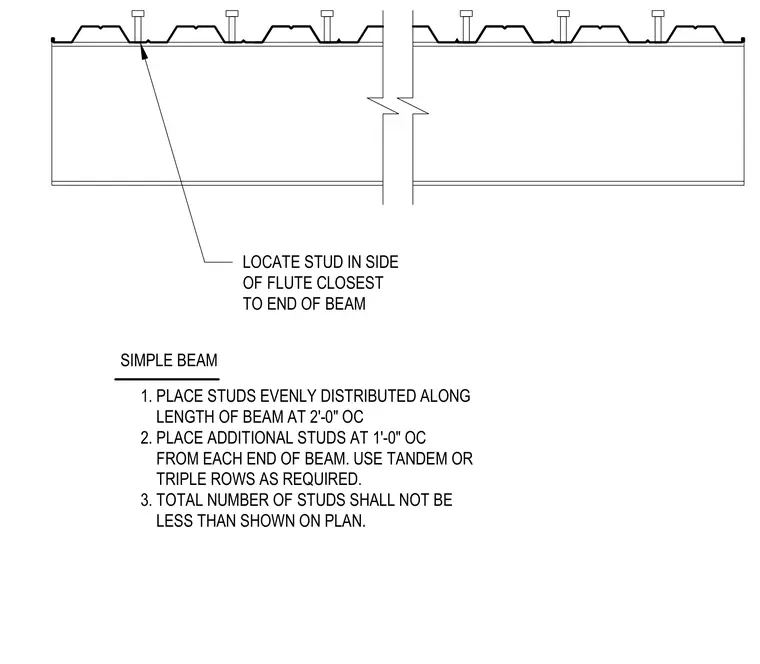

Shear studs are placed evenly distributed along the length of the beam at two feet on center. Additional studs are placed at one foot on center from each end of the beam using tandem or triple rows as required. The total number of studs must not be less than shown on plan. For simple beams, the stud is located in the side of the flute closest to the end of the beam.
1. PLACE STUDS EVENLY DISTRIBUTED ALONG LENGTH OF BEAM AT 2'-0" OC 2. PLACE ADDITIONAL STUDS AT 1'-0" OC FROM EACH END OF BEAM. USE TANDEM OR TRIPLE ROWS AS REQUIRED. 3. TOTAL NUMBER OF STUDS SHALL NOT BE LESS THAN SHOWN ON PLAN. SIMPLE BEAM LOCATE STUD IN SIDE OF FLUTE CLOSEST TO END OF BEAM
