Typical Frp Reinforcement @ (E) Brick Cmu Wall

Materials

Masonry / CMU Brick Composite

Elements

Walls Floors / Slabs Anchors / Embeds Reinforcing

Connections

Embed Plate

About this detail

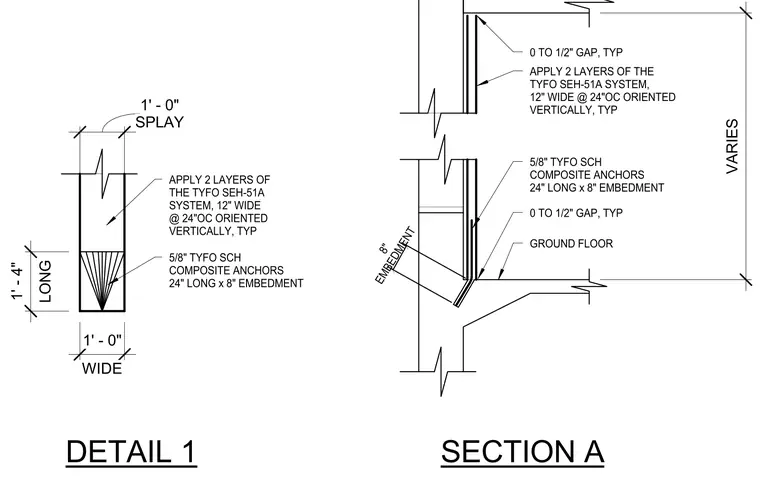

An existing brick concrete masonry unit wall is retrofitted with two layers of the Tyfo SEH-51A system, twelve inches wide at twenty-four inches on center oriented vertically, with a typical zero to one-half-inch gap. Five-eighths-inch Tyfo SCH composite anchors measuring twenty-four inches long with eight inches of embedment are installed into the wall assembly. A splay detail indicates a one-foot-four-inch length and one-foot-zero-inch width configuration.
