Beam-to-column framing conditions occur at a wide-flange column strong axis. Plate sizes and bolting are sized per plan and reference schedule 6/S-503 or 12/S-503 for high load connections. Strut beams attach to each side with kerf plate sizes and bolting configured per the high load connection schedule. Additional high load connection details apply where indicated on opposite sides of hollow structural section or pipe columns.

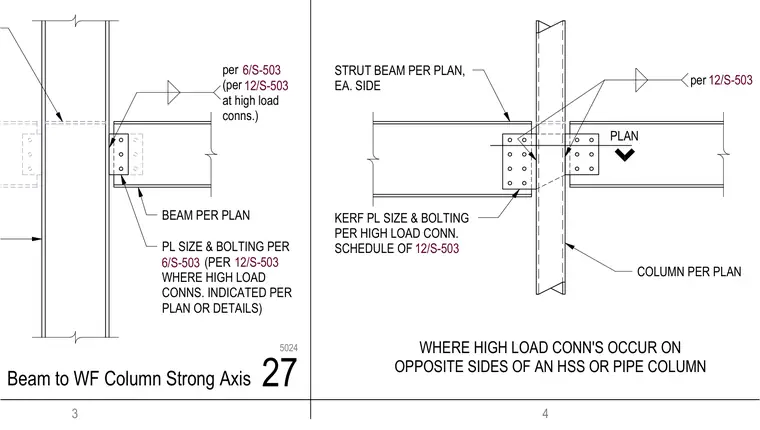

WHERE HIGH LOAD CONN'S OCCUR ON OPPOSITE SIDES OF AN HSS OR PIPE COLUMN per COLUMN PER PLAN KERF PL SIZE & BOLTING PER HIGH LOAD CONN. SCHEDULE OF STRUT BEAM PER PLAN, EA. SIDE PLAN 12/S-503 12/S-503 BEAM PER PLAN PL SIZE & BOLTING PER (PER WHERE HIGH LOAD CONNS. INDICATED PER PLAN OR DETAILS) per (per at high load conns.) 6/S-503 12/S-503 6/S-503 12/S-503 3 4 27 Beam to WF Column Strong Axis 5024
