A structural steel beam web penetration is reinforced with three-inch by one-half-inch Grade 50 top and bottom plates on each side of the beam web. The opening has a typical one-half-inch radius at the corners. A quarter-inch fillet weld connects the stiffener plates to the beam web. Penetrations are centered at half the beam depth unless noted otherwise.

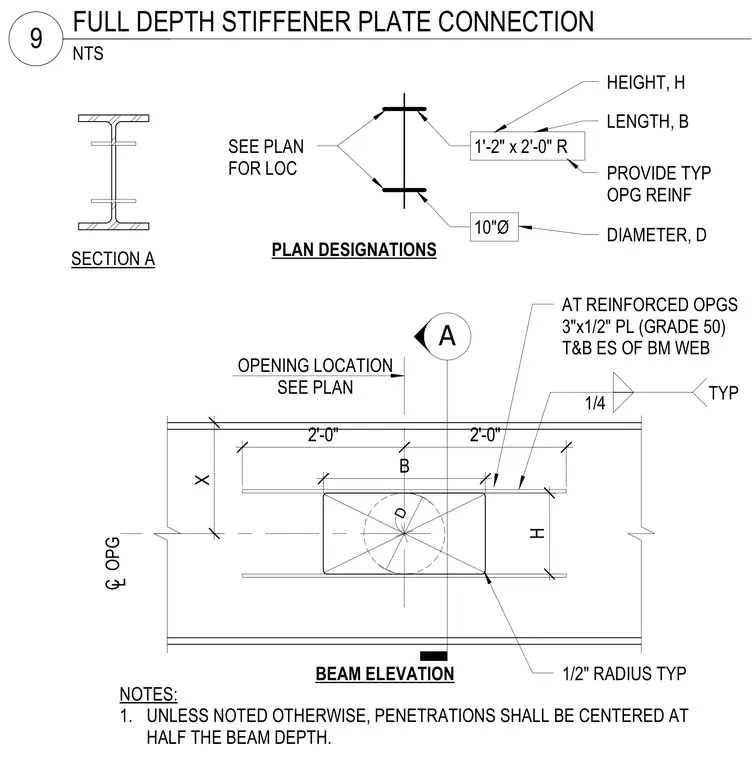

B H 1/2" RADIUS TYP NOTES: 1. UNLESS NOTED OTHERWISE, PENETRATIONS SHALL BE CENTERED AT HALF THE BEAM DEPTH. OPG OPENING LOCATION SEE PLAN C L D SEE PLAN FOR LOC 1'-2" x 2'-0" R HEIGHT, H LENGTH, B 10"Ø DIAMETER, D PLAN DESIGNATIONS BEAM ELEVATION PROVIDE TYP OPG REINF SECTION A 2'-0" 2'-0" 1/4 TYP AT REINFORCED OPGS 3"x1/2" PL (GRADE 50) T&B ES OF BM WEB X A NTS 9 FULL DEPTH STIFFENER PLATE CONNECTION
