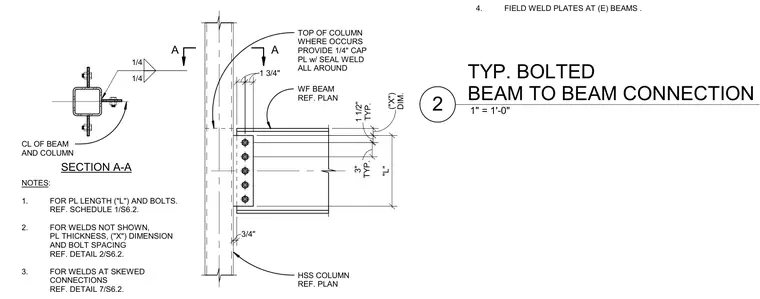

A structural steel bolted beam-to-column connection features a wide-flange beam framing into a hollow structural section column. A shear tab plate connects the beam web to the column face using standard structural bolts. A quarter-inch cap plate at the top of the column is welded all around with a seal weld. Field welds connect plates to existing beams as referenced on the plan. Plate length, bolt quantities, plate thicknesses, and spacing dimensions refer to schedules and supplementary details on the structural drawings.
4. FIELD WELD PLATES AT (E) BEAMS . SECTION A-A TOP OF COLUMN WHERE OCCURS PROVIDE 1/4" CAP PL w/ SEAL WELD ALL AROUND WF BEAM REF. PLAN 1 3/4" 1 3/4" A A DIM. ("X") TYP. 3" "L" HSS COLUMN REF. PLAN 1/4 1/4 CL OF BEAM AND COLUMN NOTES: 1. FOR PL LENGTH ("L") AND BOLTS. REF. SCHEDULE 1/S6.2. 2. FOR WELDS NOT SHOWN, PL THICKNESS, ("X") DIMENSION AND BOLT SPACING REF. DETAIL 2/S6.2. 3. FOR WELDS AT SKEWED CONNECTIONS REF. DETAIL 7/S6.2. TYP. 1 1/2" 3/4" 1" = 1'-0" 2 TYP. BOLTED BEAM TO BEAM CONNECTION
