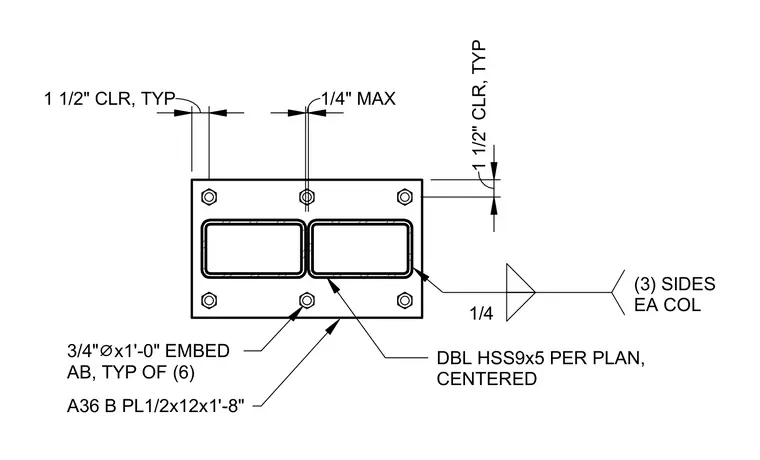

Double HSS9x5 columns are centered and welded to an A36 base plate measuring 1/2 inch by 12 inches by 1 foot 8 inches. The connection is secured by six 3/4-inch diameter by 1-foot-long embed anchor bolts placed with a typical 1 1/2-inch clearance. A 1/4-inch fillet weld is specified on three sides of each column. A maximum 1/4-inch gap is maintained between the structural members.
DBL HSS9x5 PER PLAN, CENTERED A36 B PL1/2x12x1'-8" 3/4" ⌀ x1'-0" EMBED AB, TYP OF (6) 1 1/2" CLR, TYP 1/4" MAX 1 1/2" CLR, TYP 1/4 (3) SIDES EA COL
