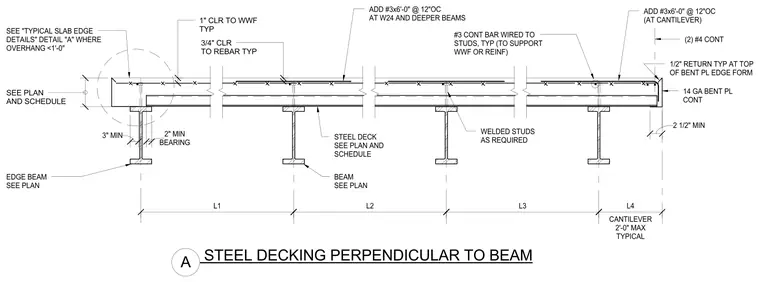

A reinforced concrete slab is supported by steel decking running perpendicular to structural steel beams with welded studs as required. The slab edge features a continuous fourteen gauge bent plate edge form with a one-half inch return at the top and two number four continuous bars for a cantilever up to two feet maximum. Additional number three bars at six feet zero inches long spaced at twelve inches on center are provided at cantilevers and at W twenty-four and deeper beams. A number three continuous bar is wired to the studs to support welded wire fabric or reinforcement. Clearances include one inch to welded wire fabric and three-quarters of an inch to rebar typical, with two inches minimum bearing and three inches minimum.
ADD #3x6'-0" @ 12"OC (AT CANTILEVER) STEEL DECKING PERPENDICULAR TO BEAM #3 CONT BAR WIRED TO STUDS, TYP (TO SUPPORT WWF OR REINF) SEE PLAN AND SCHEDULE EDGE BEAM SEE PLAN BEAM SEE PLAN STEEL DECK SEE PLAN AND SCHEDULE WELDED STUDS AS REQUIRED ADD #3x6'-0" @ 12"OC AT W24 AND DEEPER BEAMS 14 GA BENT PL CONT (2) #4 CONT CANTILEVER 2'-0" MAX TYPICAL SEE "TYPICAL SLAB EDGE DETAILS" DETAIL "A" WHERE OVERHANG <1'-0" 1/2" RETURN TYP AT TOP OF BENT PL EDGE FORM L1 L2 L3 L4 2 1/2" MIN . 3" MIN BEARING 2" MIN 1" CLR TO WWF TYP 3/4" CLR TO REBAR TYP A . .
