Structural · S-A9GK3

Suspended Loads From Metal Deck

Materials

Steel Metal (misc.)

Elements

Columns Beams Roofs Decks Bracing Anchors / Embeds

Connections

HSS Connection Bracing Connection Deck Attachment

About this detail

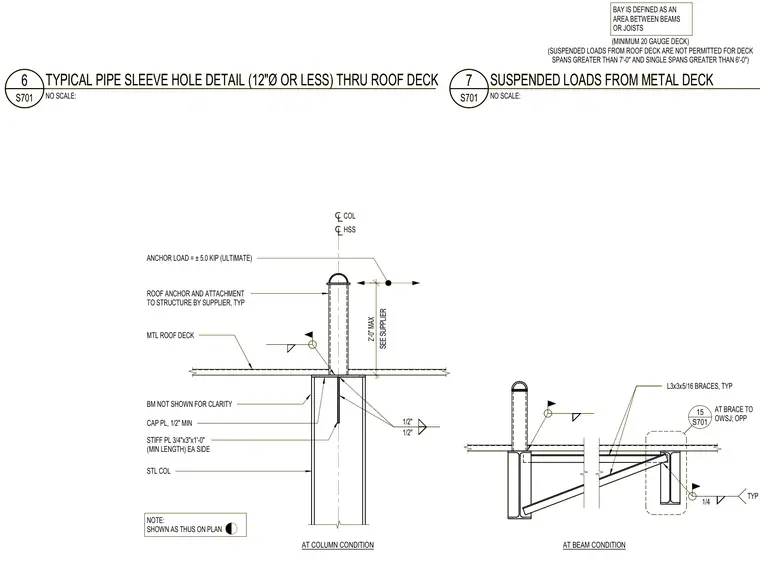

Roof anchor attachments for suspended loads frame into a metal roof deck over hollow structural section columns and steel beams. The assembly incorporates a hollow structural section roof anchor welded to a minimum half-inch cap plate atop a steel column condition, alongside three-quarter-inch by three-inch by one-foot stiffener plates on each side. Angle braces measuring three by three by five-sixteenths connect back to the open web steel joist framing. Anchor loads are limited to plus or minus five kips ultimate, restricted to minimum twenty-gauge deck spans under seven feet and single spans under six feet.
