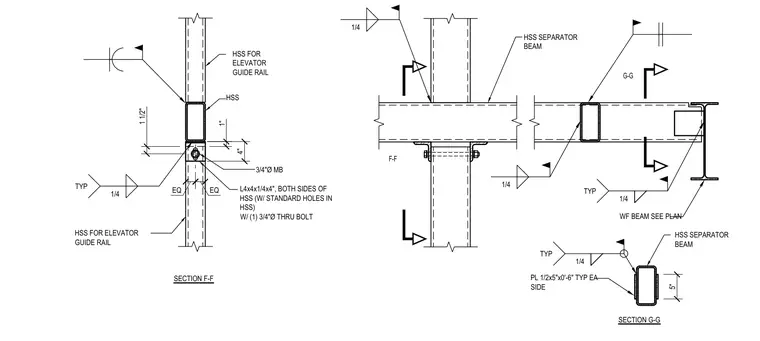

This structural steel connection details the attachment of hollow structural section elevator guide rails to an HSS separator beam. The assembly uses L4x4x1/4x4" angles on both sides of the HSS with standard holes, secured with one 3/4" diameter through bolt. Additional connection plates measuring 1/2" x 5" x 0'-6" are welded to each side using typical quarter-inch fillet welds. The separator beam connects back to a wide flange beam sized per plan.
4" 1 1/2" 1" HSS FOR ELEVATOR GUIDE RAIL HSS HSS FOR ELEVATOR GUIDE RAIL EQ EQ 1/4 TYP L4x4x1/4x4", BOTH SIDES OF HSS (W/ STANDARD HOLES IN HSS) W/ (1) 3/4"Ø THRU BOLT 3/4"Ø MB 1/4 F-F SECTION F-F 1/4 TYP WF BEAM SEE PLAN PL 1/2x5"x0'-6" TYP EA SIDE G-G SECTION G-G HSS SEPARATOR BEAM HSS SEPARATOR BEAM 1/4 TYP 1/4 5"
