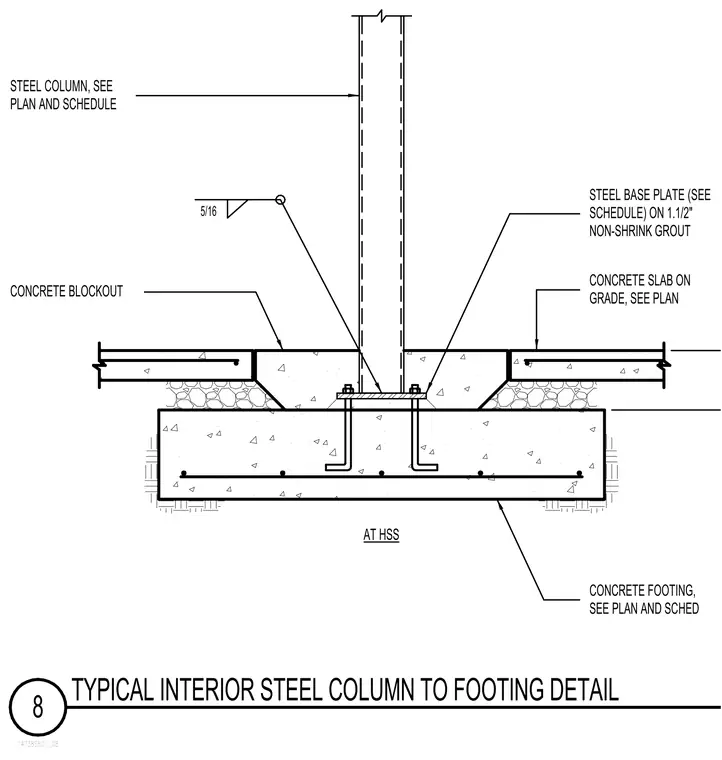

A hollow structural section steel column connects to a steel base plate resting on a one-and-a-half-inch layer of non-shrink grout above a concrete footing. The base plate is secured with hooked anchor bolts embedded into the concrete footing. A fillet weld size of five-sixteenths connects the steel column to the base plate. A concrete blockout surrounds the column base within the concrete slab on grade.
14738S501_08 8 TYPICAL INTERIOR STEEL COLUMN TO FOOTING DETAIL CONCRETE SLAB ON GRADE, SEE PLAN STEEL BASE PLATE (SEE SCHEDULE) ON 1.1/2" NON-SHRINK GROUT 5/16 STEEL COLUMN, SEE PLAN AND SCHEDULE CONCRETE BLOCKOUT CONCRETE FOOTING, SEE PLAN AND SCHED AT HSS
