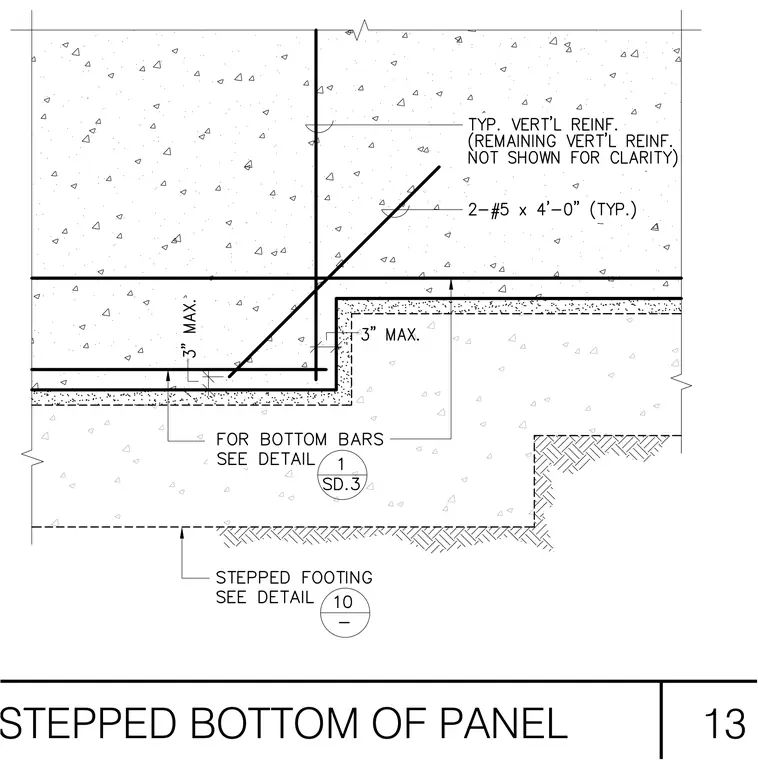

A concrete wall panel features a stepped bottom edge bearing above a stepped footing. Typical vertical reinforcement continues through the section, supplemented by two number five bars at four feet zero inches typical diagonal corner reinforcement. A three-inch maximum vertical step offset is detailed at the transition. Bottom bars and stepped footing configurations reference exterior connection details.
