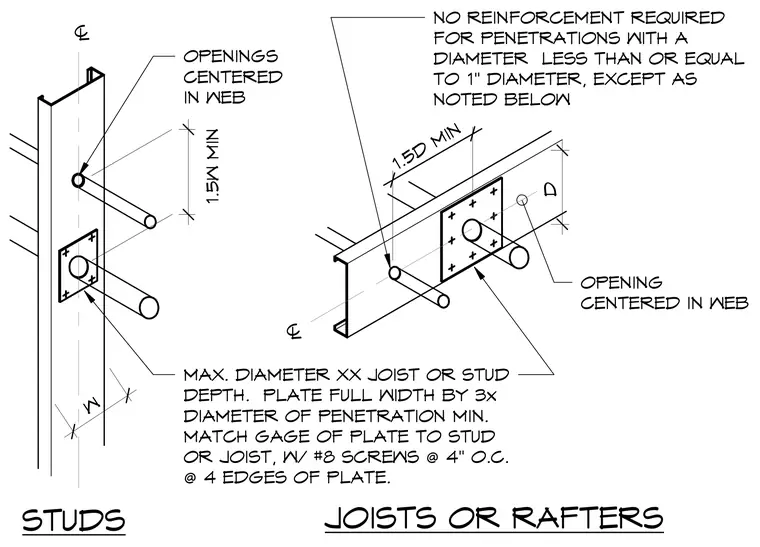

Cold-formed steel studs, joists, and rafters feature web penetrations centered in the web with minimum spacing requirements. Penetrations with a diameter less than or equal to one inch require no reinforcement unless noted otherwise. Larger penetrations are reinforced using a steel plate spanning the full width of the member and measuring at least three times the penetration diameter. The plate gauge matches the stud or joist, secured with number eight screws at four inches on center along all four edges.
W 1.5D MIN 1.5W MIN D STUDS JOISTS OR RAFTERS OPENINGS CENTERED IN WEB MAX. DIAMETER XX JOIST OR STUD DEPTH. PLATE FULL WIDTH BY 3x DIAMETER OF PENETRATION MIN. MATCH GAGE OF PLATE TO STUD OR JOIST, W/ #8 SCREWS @ 4" O.C. @ 4 EDGES OF PLATE. NO REINFORCEMENT REQUIRED FOR PENETRATIONS WITH A DIAMETER LESS THAN OR EQUAL TO 1" DIAMETER, EXCEPT AS NOTED BELOW OPENING CENTERED IN WEB ® ®
