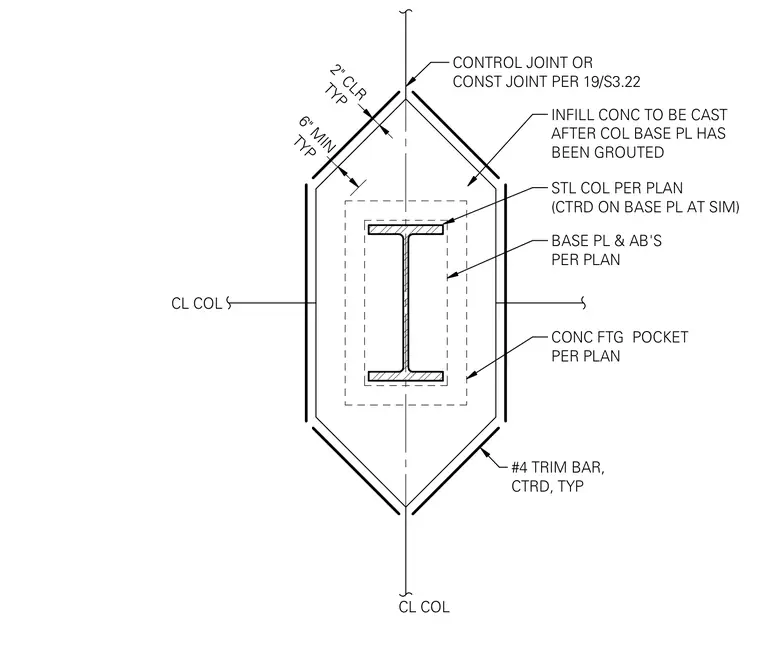

A steel column is centered on a base plate and anchor bolts set within a concrete footing pocket. Infill concrete is cast after the column base plate has been grouted. A control joint or construction joint is located at the perimeter per structural plans. Number 4 trim reinforcing bars are centered typically around the pocket with specified clearances.
CONTROL JOINT OR CONST JOINT PER 19/S3.22 INFILL CONC TO BE CAST AFTER COL BASE PL HAS BEEN GROUTED #4 TRIM BAR, CTRD, TYP STL COL PER PLAN (CTRD ON BASE PL AT SIM) BASE PL & AB'S PER PLAN CONC FTG POCKET PER PLAN TYP 2" CLR TYP 6" MIN CL COL CL COL
