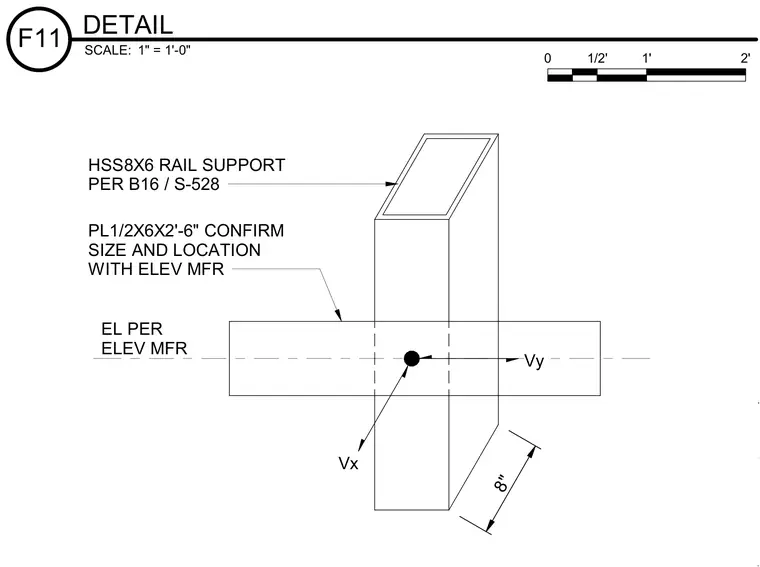

An 8-inch hollow structural section supports the elevator guide rail per structural design, with sizing to be confirmed with the elevator manufacturer. A half-inch by 6-inch by two-foot-six-inch steel plate is mounted to the assembly to handle horizontal reactions Vx and Vy. The exact elevation and attachment locations must be coordinated with the elevator manufacturer specifications.
ELEVATOR SUPPORT FRAMING NOTES: 1. 2. 3. VERT LSL, GAGE = 4" PL1/2X6X2'-6" CONFIRM SIZE AND LOCATION WITH ELEV MFR Vx Vy 8" HSS8X6 RAIL SUPPORT PER B16 / S-528 EL PER ELEV MFR SCALE: 1" = 1'-0" F11 DETAIL 0 1/2' 1' 2'
