Structural · S-A8GAD

One-Way Slab Reinforcing Detail and Plan

Materials

Timber / Wood

Elements

Beams Walls Floors / Slabs Reinforcing

Connections

Rebar Splice / Development

About this detail

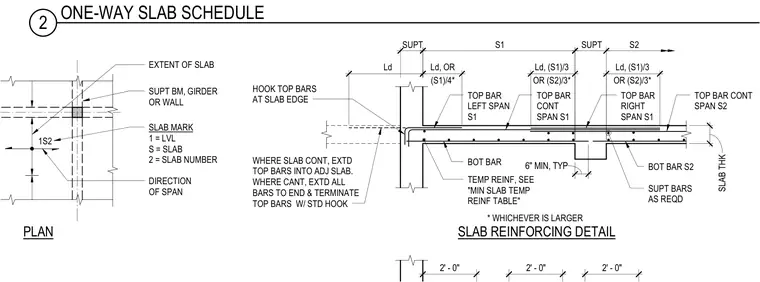

A standard reinforcing layout for a one-way concrete slab spans over support beams, girders, or walls. The assembly includes continuous and top bars extending across spans with specified development lengths, standard hooks at slab edges, and temperature reinforcement per schedule. Accompanying plan and section views clarify slab marking conventions, span directions, and minimum clearances. Top bars are hooked at free edges where slabs terminate and extended continuously into adjacent spans where continuous.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
