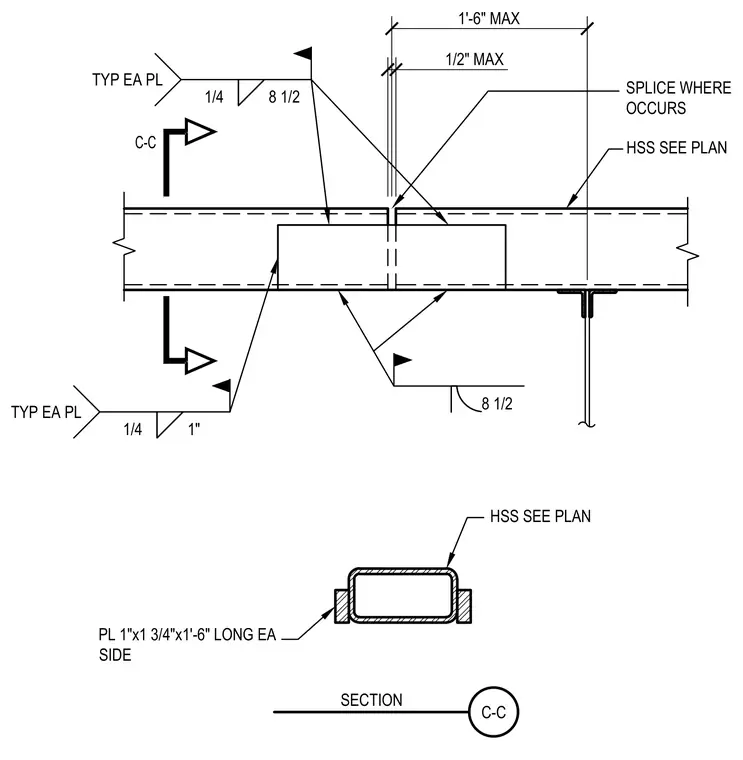

Two aligned hollow structural section members are joined end-to-end with a maximum half-inch gap at the splice location. Two one-inch by one-and-three-quarter-inch by one-foot-six-inch long splice plates are welded to each side of the hollow structural section members. One-quarter-inch fillet welds secure the plates with specified spacings and lengths on each side.
1/2" MAX SPLICE WHERE OCCURS HSS SEE PLAN HSS SEE PLAN C-C PL 1"x1 3/4"x1'-6" LONG EA SIDE C-C SECTION 1'-6" MAX 1/4 8 1/2 TYP EA PL 1/4 1" TYP EA PL 8 1/2
