Structural · S-A85RQ

Roof Overhang at Braced Frames

Materials

Elements

Columns Beams Walls Windows Curtain Walls Roofs Decks Arches Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Deck Attachment Timber / Mass-Timber Connection

About this detail

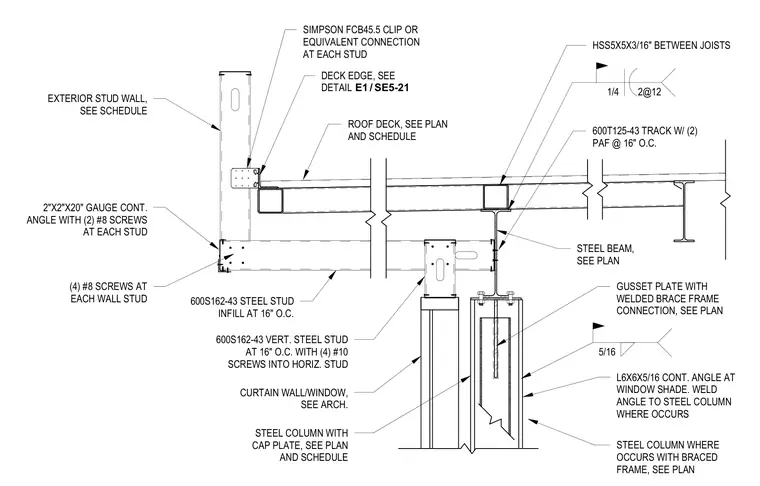

A roof overhang assembly intersects a braced frame column and steel beam support. The roof deck bears on structural steel framing with HSS5x5x3/16 hollow structural sections between joists, utilizing 1/4 inch fillet welds spaced at 12 inches. A 600T125-43 track is secured with two powder-actuated fasteners at 16 inches on center. The exterior stud wall features 600S162-43 steel studs at 16 inches on center, tied to the deck edge with a Simpson FCB45.5 clip or equivalent connection at each stud and a continuous 2x2x20 gauge angle fastened with two number 8 screws at each stud. Below, a steel column with a cap plate supports a steel beam, adjacent to a braced frame column incorporating a gusset plate with a welded brace frame connection. A continuous L6x6x5/16 angle is welded to the steel column with a 5/16 inch fillet weld where it occurs at the window shade.
