Steel Stud Wall and Edge of Slab Detail

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Beams Walls Windows Curtain Walls Facades / Cladding Decks Arches Insulation Anchors / Embeds Connections / Plates

About this detail

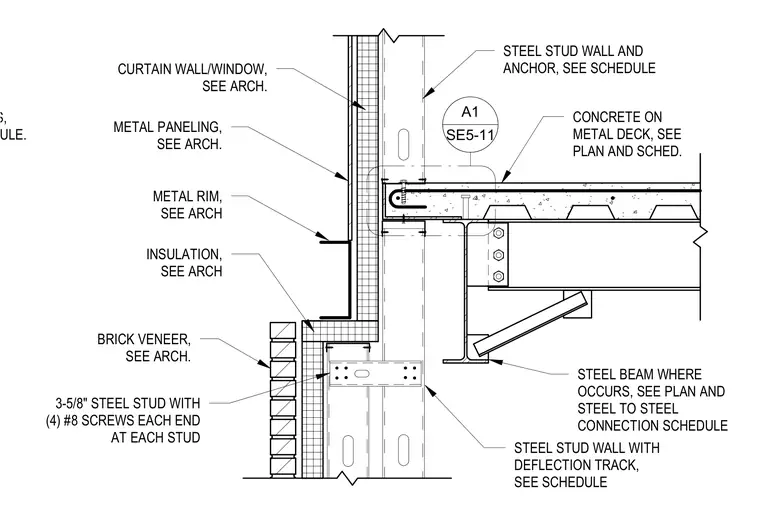

A steel stud backup wall interfaces with a concrete floor slab on metal deck. The concrete slab bears on a structural steel beam, which is detailed with a steel-to-steel connection and a diagonal brace. A 3-5/8 inch steel stud wall with deflection track and steel framing anchors connects to the structure. The exterior facade layers include brick veneer, insulation, metal trim, metal paneling, and curtain wall or window assemblies sized per architectural plans.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
