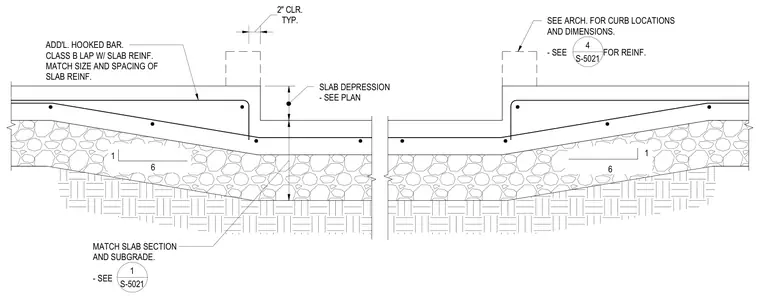

Additional hooked reinforcing bars match the size and spacing of the slab reinforcement and form a Class B lap splice with it. The concrete slab transitions into a depression with a two-inch typical clearance. The thickened subgrade matches the adjacent slab section and subgrade. Architectural plans dictate curb locations, dimensions, and reinforcement details.
1 6 1 6 ADD'L. HOOKED BAR. CLASS B LAP W/ SLAB REINF. MATCH SIZE AND SPACING OF SLAB REINF. SEE ARCH. FOR CURB LOCATIONS AND DIMENSIONS. - SEE FOR REINF. SLAB DEPRESSION - SEE PLAN MATCH SLAB SECTION AND SUBGRADE. - SEE 1 S-5021 4 S-5021 TYP. 2" CLR.
