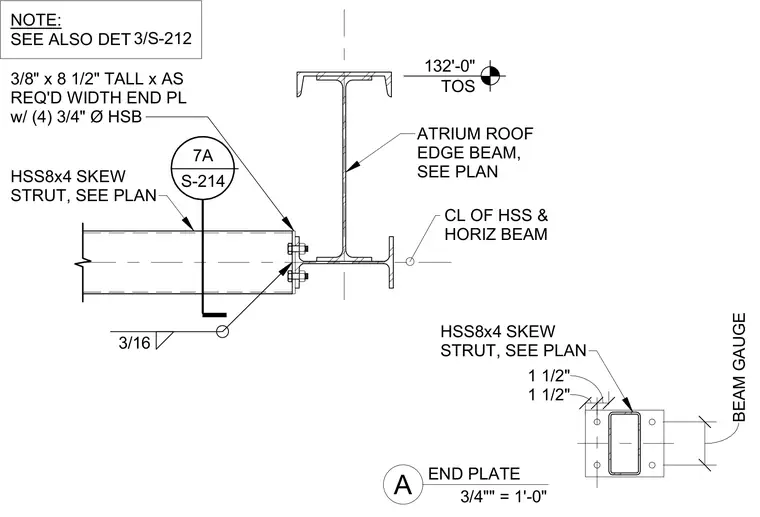

An HSS8x4 skew strut frames into the web of an atrium roof edge beam at elevation 132'-0" TOS. The connection utilizes a 3/8-inch by 8-1/2-inch tall end plate welded to the end of the hollow structural section with a 3/16-inch fillet weld and secured with four 3/4-inch diameter high-strength bolts. A supplementary end plate detail shows the bolt gauge and spacing dimensions.
132'-0" TOS HSS8x4 SKEW STRUT, SEE PLAN BEAM GAUGE 1 1/2" 1 1/2" A 3/4"" = 1'-0" END PLATE ATRIUM ROOF EDGE BEAM, SEE PLAN NOTE: SEE ALSO DET ---------- 3/S-212 HSS8x4 SKEW STRUT, SEE PLAN 3/8" x 8 1/2" TALL x AS REQ'D WIDTH END PL w/ (4) 3/4" Ø HSB 3/16 CL OF HSS & HORIZ BEAM 7A S-214 _______________
