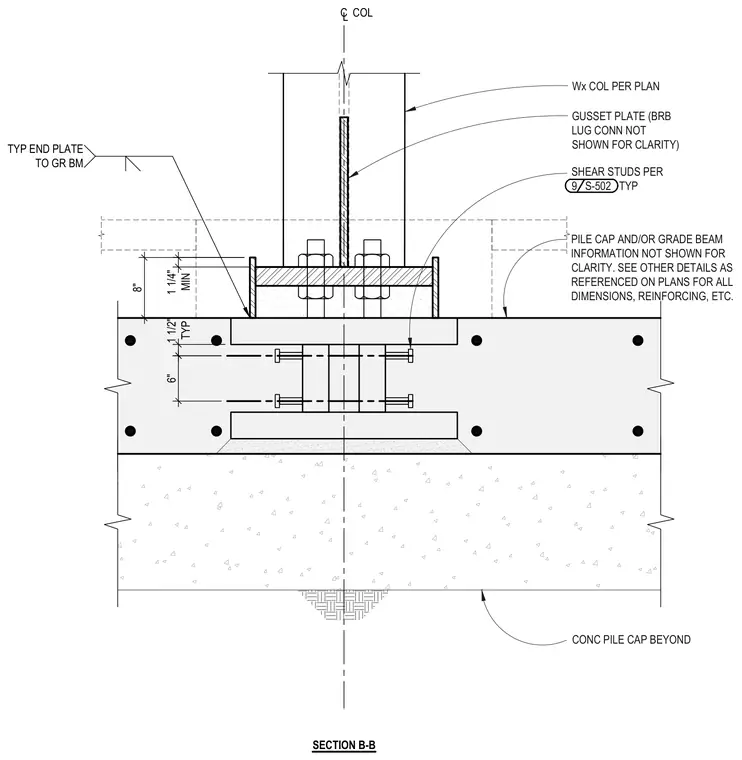

A wide-flange column centered on a pile cap and grade beam features an internal gusset plate for a buckling-restrained brace, with the buckling-restrained brace lug connection omitted for clarity. A typical end plate connects to the grade beam concrete, supported by anchor rods and embedded plates with six-inch shear studs. Pile cap and grade beam reinforcing details are referenced on plans and omitted from this view.
SECTION B-B 8" 1 1/4" MIN C COL L Wx COL PER PLAN GUSSET PLATE (BRB LUG CONN NOT SHOWN FOR CLARITY) PILE CAP AND/OR GRADE BEAM INFORMATION NOT SHOWN FOR CLARITY. SEE OTHER DETAILS AS REFERENCED ON PLANS FOR ALL DIMENSIONS, REINFORCING, ETC. TYP END PLATE TO GR BM CONC PILE CAP BEYOND 1 1/2" TYP 6" SHEAR STUDS PER 9 S-502 TYP
