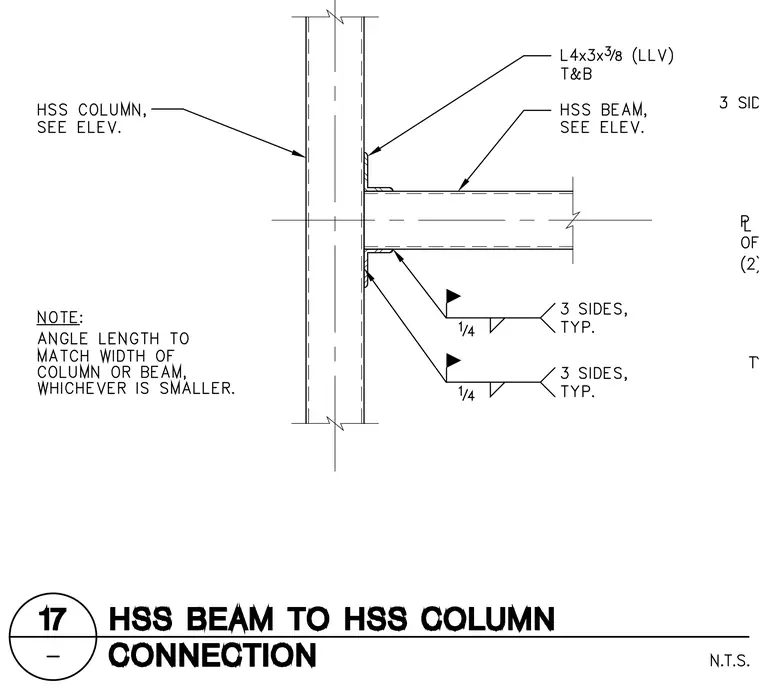

An HSS beam connects to an HSS column using L4x3x3/8 angles welded at the top and bottom with 1/4-inch fillet welds on three sides typically. The angle length matches the width of the column or beam, whichever is smaller, per the drawing notes. The HSS column and HSS beam sizes are sized per elevations. Field welds secure the connection assembly.
