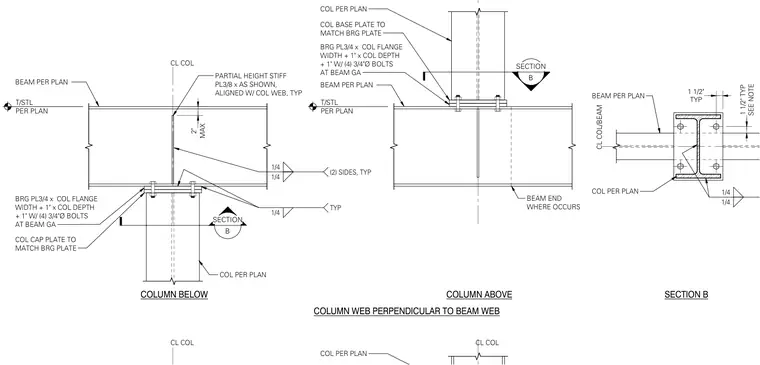

This structural steel detail shows a column framing perpendicular to a beam web with a bolted bearing plate connection. The assembly incorporates a three-quarter-inch bearing plate matching the column flange width and depth plus one inch, secured with four three-quarter-inch diameter bolts at the beam gauge. A column cap plate matches the bearing plate size above, while a base plate matches it below. A three-eighth-inch partial-height stiffener plate aligns with the column web and is welded with typical quarter-inch fillet welds on two sides.
COL PER PLAN COLUMN BELOW CL COL BEAM PER PLAN T/STL PER PLAN BRG PL3/4 x COL FLANGE WIDTH + 1" x COL DEPTH + 1" W/ (4) 3/4"Ø BOLTS AT BEAM GA COL CAP PLATE TO MATCH BRG PLATE PARTIAL HEIGHT STIFF PL3/8 x AS SHOWN, ALIGNED W/ COL WEB, TYP 1/4 1/4 (2) SIDES, TYP 1/4 TYP B SECTION COL PER PLAN COLUMN ABOVE BEAM PER PLAN T/STL PER PLAN BRG PL3/4 x COL FLANGE WIDTH + 1" x COL DEPTH + 1" W/ (4) 3/4"Ø BOLTS AT BEAM GA COL BASE PLATE TO MATCH BRG PLATE B SECTION BEAM END WHERE OCCURS CL COL COL PER PLAN CL COL MAX 2" TYP 1 1/2" SEE NOTE 1 1/2" TYP BEAM PER PLAN COL PER PLAN 1/4 1/4 CL COL/BEAM SECTION B COLUMN WEB PERPENDICULAR TO BEAM WEB
