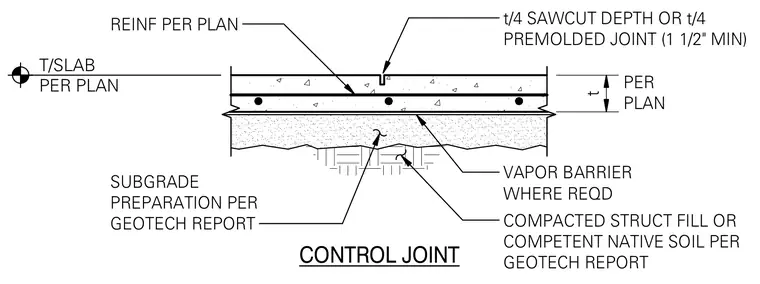

A concrete slab rests on a vapor barrier where required, placed over compacted structural fill or competent native soil prepared per the geotechnical report. Reinforcement is positioned within the slab per plan. The top of the slab features either a sawcut joint or a premolded joint with a depth equal to one-fourth of the slab thickness and a minimum one-and-a-half-inch dimension.
CONTROL JOINT SUBGRADE PREPARATION PER GEOTECH REPORT VAPOR BARRIER WHERE REQD COMPACTED STRUCT FILL OR COMPETENT NATIVE SOIL PER GEOTECH REPORT REINF PER PLAN PER PLAN t t/4 SAWCUT DEPTH OR t/4 PREMOLDED JOINT (1 1/2" MIN) T/SLAB PER PLAN
