One Sided Beam Connection

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

Braced Frame Connection Beam-to-Column Welded Connection Bolted Connection

About this detail

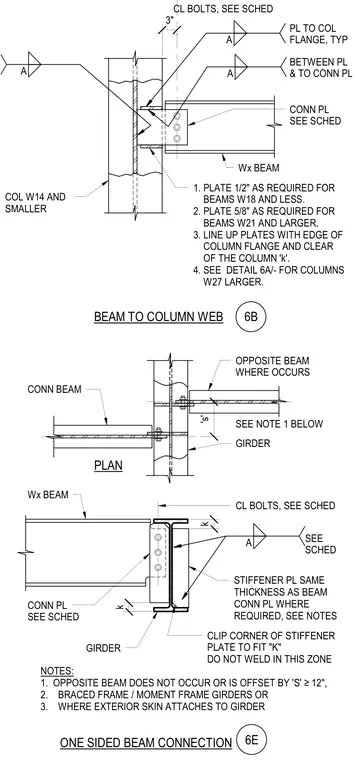

A one-sided beam connection frames into a wide-flange column web for W14 and smaller columns. The assembly incorporates a connection plate sized per schedule, secured with center-line bolts and fillet welds labeled "A" at the plate-to-column flange and between plates. A stiffener plate matching the beam connection plate thickness is included where required by notes, with corners clipped to clear the column "k" dimension and left unwelded in that zone. Additional framing conditions specify that the opposite beam either does not occur, is offset by twelve inches or more, occurs at braced frame or moment frame girders, or applies where exterior skin attaches to the girder.
