Structural · S-A6J48

Gusset Plate Connection at Composite Slab Edge

Materials

Concrete

Elements

Facades / Cladding Floors / Slabs Decks Trusses Bracing Connections / Plates Reinforcing

Connections

Gusset Plate Bracing Connection Shear Stud / Composite Rebar Splice / Development Deck Attachment

About this detail

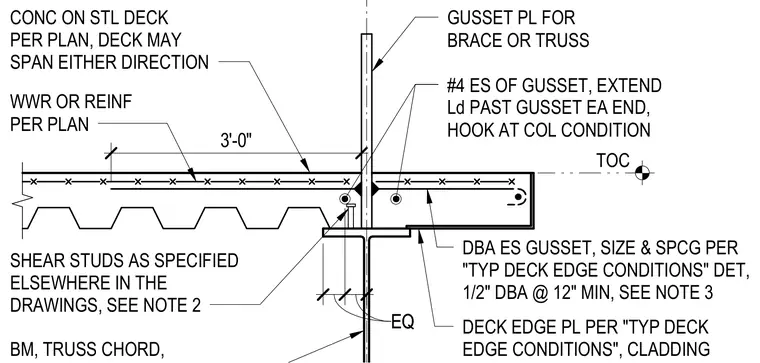

A vertical gusset plate for a brace or truss intersects a concrete slab on a steel deck at the perimeter condition. The concrete topping is reinforced with welded wire reinforcement or reinforcing steel per plan, and supported by a deck edge plate. Number four reinforcing bars are placed each side of the gusset, extending development length past the gusset each end and hooked at the column condition. Deformed bar anchors are provided each side of the gusset, sized and spaced per typical deck edge conditions, with half-inch deformed bar anchors at twelve inches minimum. Shear studs are specified elsewhere in the drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
