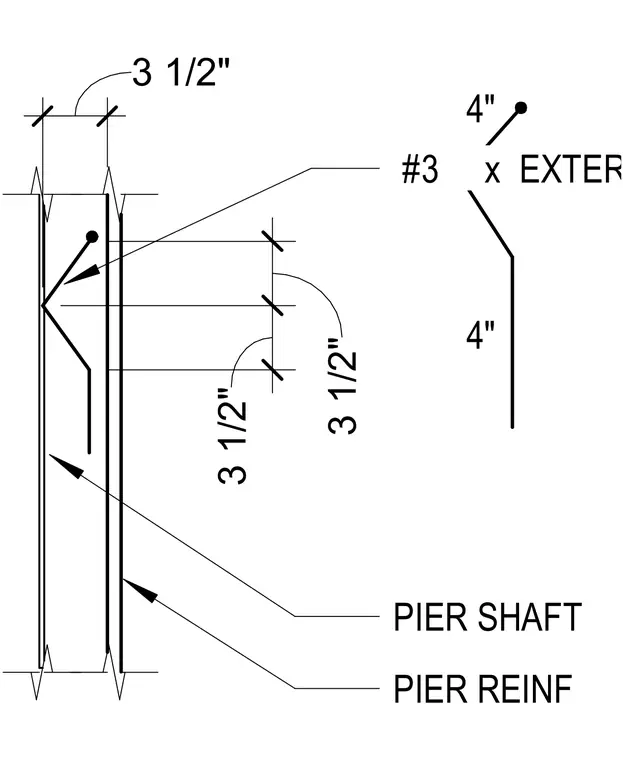

A number three reinforcing bar serves as an exterior alignment bar for the pier reinforcement cage. The alignment bar features four-inch segments and maintains a three and one-half inch concrete cover clearance from the face of the pier shaft. Pier reinforcement is positioned within the pier shaft, with the alignment bar ensuring proper spacing and orientation of the vertical steel.
Text on the drawing
ALIGNMENT BAR DETAIL PIER REINF 3 1/2" 3 1/2" #3 x EXTERIOR 4" 4" ALIGNMENT SPACER WHEEL DETAIL (ALTERNATE) PIER VERT REINF PIER SHAFT PIER TIE PIER SHAFT SPACER WHEEL 3 1/2" COVER CLR
