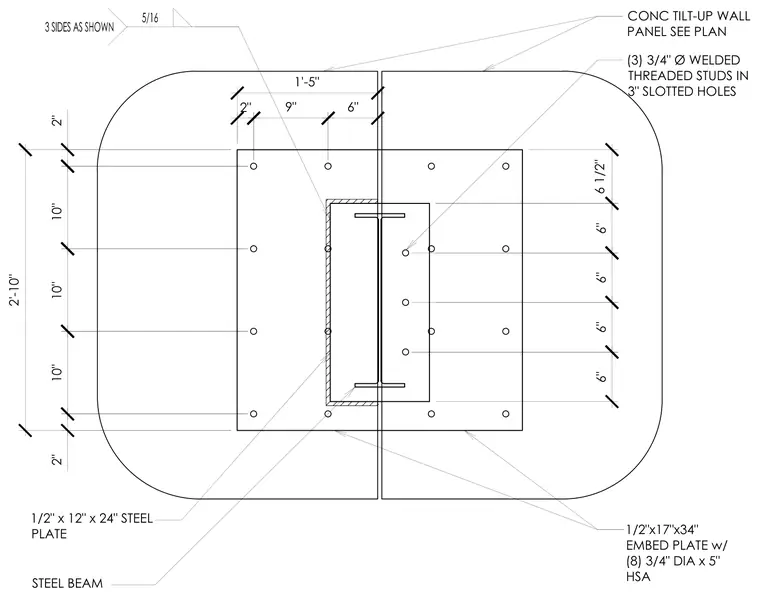

A steel beam connects to a concrete tilt-up wall panel using a 1/2-inch by 17-inch by 34-inch embed plate secured with eight 3/4-inch diameter by 5-inch heavy stud anchors. A 1/2-inch by 12-inch by 24-inch steel plate featuring three 3/4-inch diameter welded threaded studs in 3-inch slotted holes ties the assembly together. A 5/16-inch fillet weld applied on three sides as shown secures the steel components.
2" 9" 6" 10" 10" 10" 2" 2'-10" 1'-5" STEEL BEAM 1/2"x17"x34" EMBED PLATE w/ (8) 3/4" DIA x 5" HSA CONC TILT-UP WALL PANEL SEE PLAN 2" 6" 6" 6" :(/'(' THREADED STUDS IN 3" SLOTTED HOLES 1/2" x 12" x 24" STEEL PLATE 6" 6 1/2"
