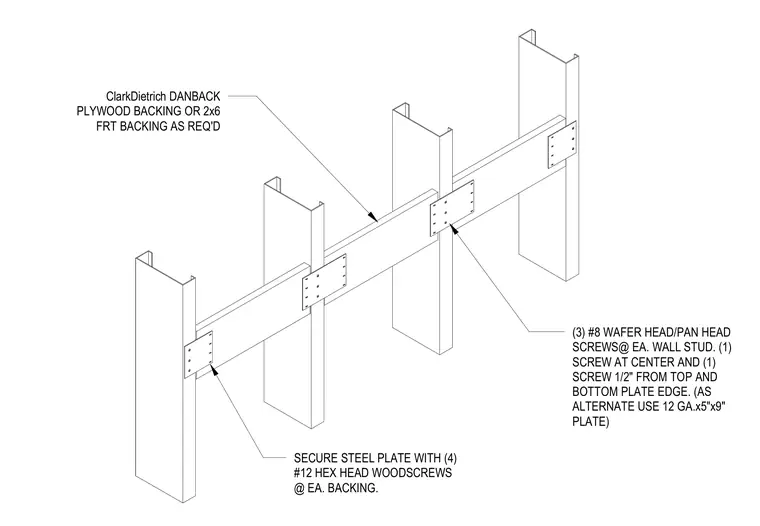

Horizontal ClarkDietrich Danback plywood backing or a 2x6 fire-retardant-treated wood backing spans between cold-formed steel wall studs. Each stud connection utilizes three number 8 wafer head or pan head screws placed at the center and one-half inch from the top and bottom plate edges. As an alternate method, a 12 gauge by 5-inch by 9-inch steel plate is secured to each backing piece using four number 12 hex head wood screws.
ClarkDietrich DANBACK PLYWOOD BACKING OR 2x6 FRT BACKING AS REQ'D (3) #8 WAFER HEAD/PAN HEAD SCREWS@ EA. WALL STUD. (1) SCREW AT CENTER AND (1) SCREW 1/2" FROM TOP AND BOTTOM PLATE EDGE. (AS ALTERNATE USE 12 GA.x5"x9" PLATE) SECURE STEEL PLATE WITH (4) #12 HEX HEAD WOODSCREWS @ EA. BACKING.
