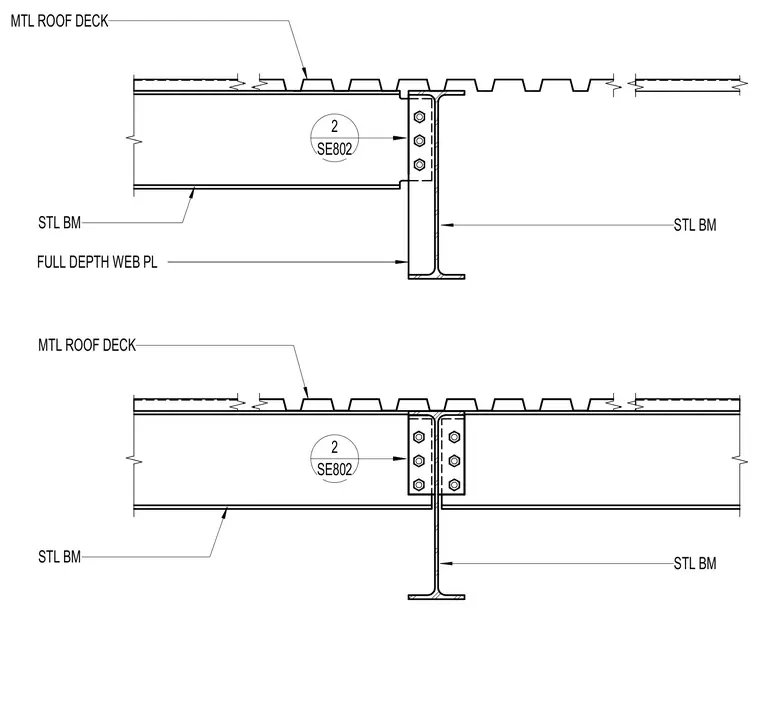

This structural detail shows a steel beam framing into the web of another steel beam beneath a metal roof deck. The connection is made using full-depth web plates fastened with bolts through the webs of the framing and supporting members. Metal roof deck bears continuously across the top flanges of the framing beams.
FULL DEPTH WEB PL STL BM STL BM STL BM STL BM MTL ROOF DECK MTL ROOF DECK 2 SE802 2 SE802
