A structural steel column terminates at a base plate welded with five-sixteenths inch fillet welds per American Institute of Steel Construction standards. The base plate rests on a layer of non-shrink grout above the top of the concrete footing. Four anchor rods secure the column assembly, featuring either one-and-one-quarter inch diameter with eighteen inch embedment or one-and-one-half inch diameter with twenty-four inch embedment. Three-inch square by three-eighths inch thick plate washers are provided at the anchor rod bottoms. Oversized anchor rod holes require one-half inch plate washers secured with five-sixteenths inch fillet welds.

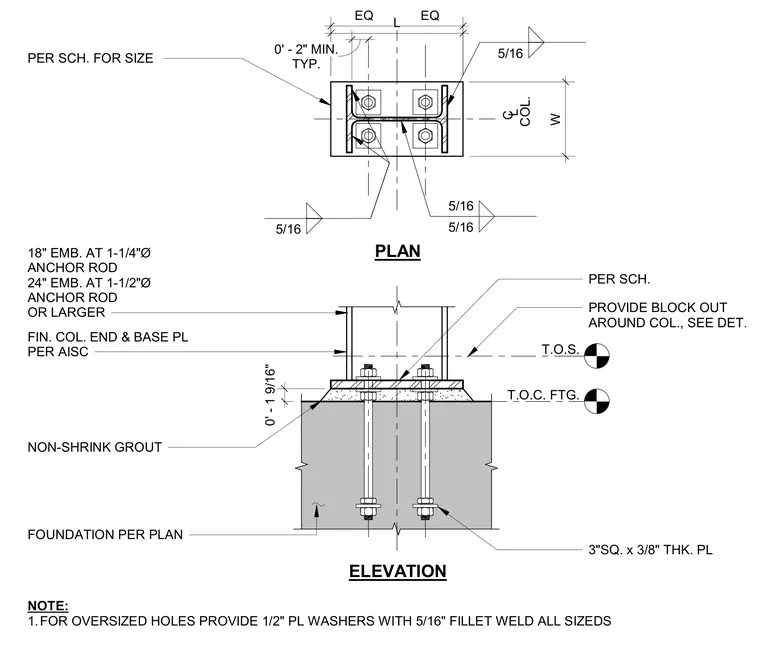

FIN. COL. END & BASE PL PER AISC 0' - 1 9/16" NON-SHRINK GROUT PROVIDE BLOCK OUT AROUND COL., SEE DET. ELEVATION PLAN 5/16 EQ EQ L PER SCH. FOR SIZE 5/16 5/16 5/16 W T.O.C. FTG. CL COL. TYP. 0' - 2" MIN. T.O.S. 18" EMB. AT 1-1/4"Ø ANCHOR ROD 24" EMB. AT 1-1/2"Ø ANCHOR ROD OR LARGER 3"SQ. x 3/8" THK. PL NOTE: 1.FOR OVERSIZED HOLES PROVIDE 1/2" PL WASHERS WITH 5/16" FILLET WELD ALL SIZEDS FOUNDATION PER PLAN PER SCH.
