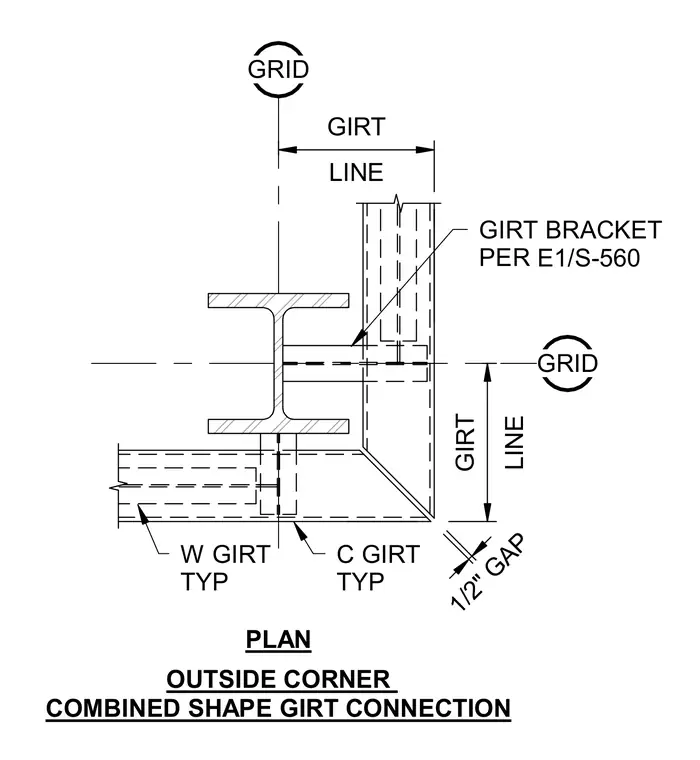

An outside corner girt connection utilizes a wide-flange column with typical wide-flange girts and channel girts tied back via girt brackets. A one-half-inch gap is maintained at the mitered corner between intersecting exterior framing elements. Grid lines establish the precise alignment and dimensional layout for the structural girt members.
OUTSIDE CORNER COMBINED SHAPE GIRT CONNECTION PLAN 1/2" GAP GRID C GIRT TYP W GIRT TYP GRID LINE GIRT LINE GIRT GIRT BRACKET PER PE1/S-560
