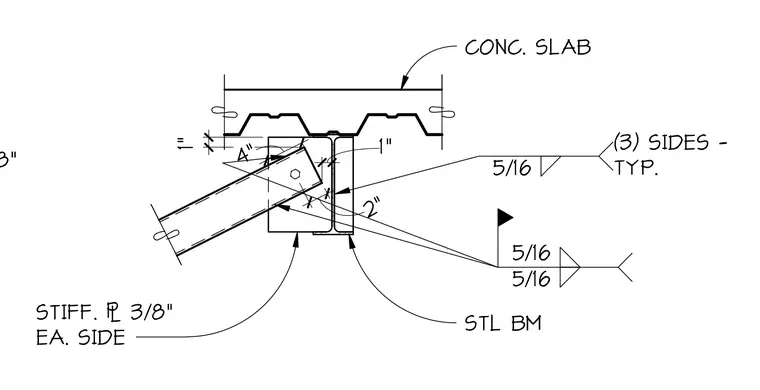

A structural steel diagonal brace frames into a gusset plate welded to the web of a supporting steel beam. Three-eighths-inch thick stiffener plates are welded to each side of the beam web to reinforce the connection. Five-sixteenths-inch fillet welds secure the plates typically along three sides. The steel beam supports a metal deck with a concrete slab above.
1" 1" 2" 4" CONC. SLAB STL BM STIFF. 3/8" EA. SIDE 5/16 (3) SIDES - TYP. 5/16 5/16 7/8"
