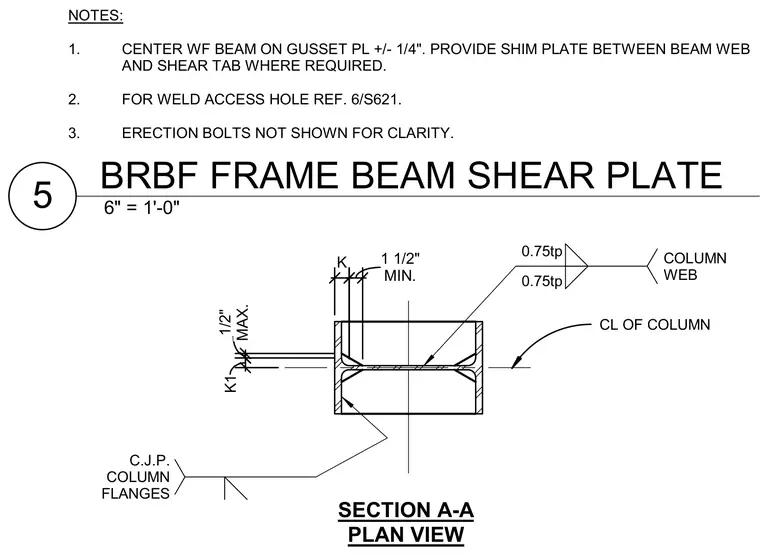

A wide-flange beam web connects to a gusset plate at a buckling-restrained braced frame column, with provisions for a shim plate between the beam web and shear plate where required. Complete-joint-penetration welds attach plates to the column web and flanges, maintaining specified clearances near the column K-area and weld access holes. Erection bolts are omitted for clarity. Centerline alignment requires centering the wide-flange beam on the gusset plate within a one-quarter inch tolerance.
SECTION A-A PLAN VIEW CL OF COLUMN 0.75tp 0.75tp COLUMN WEB C.J.P. COLUMN FLANGES K1 K MAX. 1/2" MIN. 1 1/2" NOTES: 1. CENTER WF BEAM ON GUSSET PL +/- 1/4". PROVIDE SHIM PLATE BETWEEN BEAM WEB AND SHEAR TAB WHERE REQUIRED. 2. FOR WELD ACCESS HOLE REF. 6/S621. 3. ERECTION BOLTS NOT SHOWN FOR CLARITY. 6" = 1'-0" 5 BRBF FRAME BEAM SHEAR PLATE
