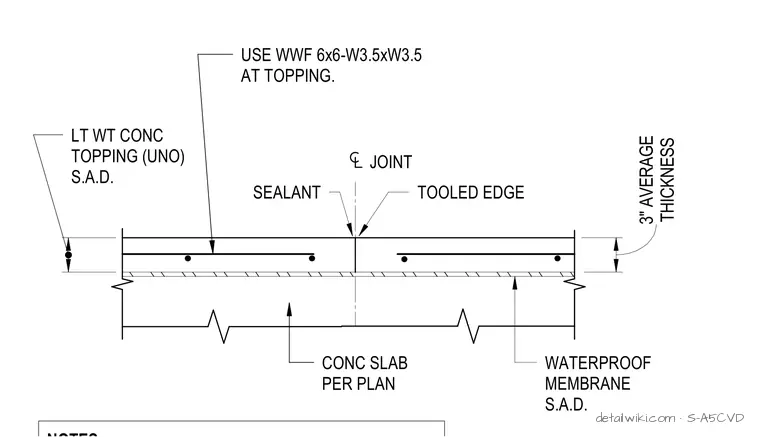

S-A5CVD — Typical Concrete Topping Slab Detail

Structural · S-A5CVD

Typical Concrete Topping Slab Detail

Units: imperial
Discipline: Structural

Materials

Concrete Membrane / Roofing Reinforced Concrete Steel

Elements

Expansion / Control Joints Floors / Slabs Reinforcing Waterproofing / Flashing

Text on the drawing

THICKNESS 3" AVERAGE JOINT SEALANT TOOLED EDGE USE WWF 6x6-W3.5xW3.5 AT TOPPING. LT WT CONC TOPPING (UNO) S.A.D. CONC SLAB PER PLAN WATERPROOF MEMBRANE S.A.D. .

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
