Structural · S-A57W7

Steel Beam Framing at Bundled Studs and Metal Deck

Materials

Elements

About this detail

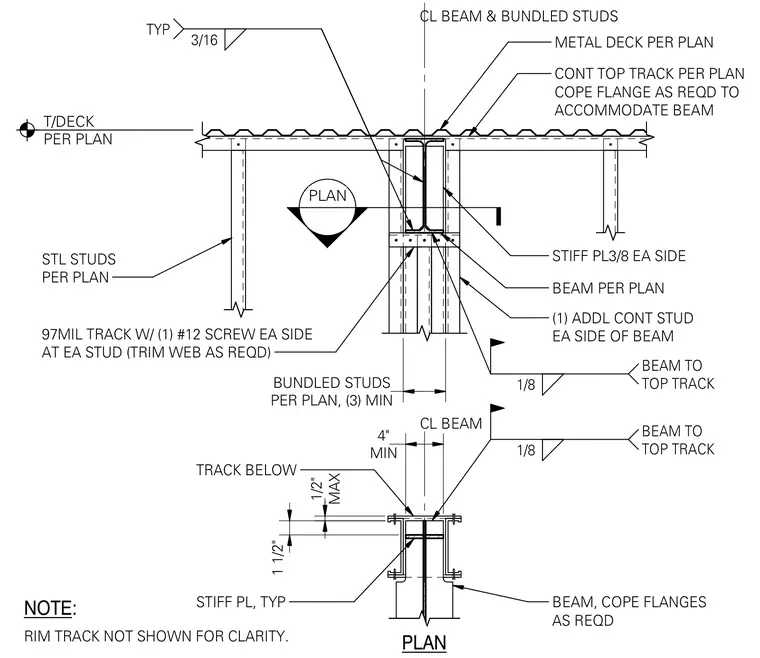

A steel beam frames into a group of at least three bundled cold-formed steel studs beneath a metal deck, with flanges coped as required to clear the continuous top track. Three-eighths-inch stiffener plates are welded to each side of the beam with a three-sixteenths-inch fillet weld, and the beam is connected to the top track with an one-eighth-inch fillet weld. One additional continuous steel stud is placed on each side of the beam, framed with ninety-seven-mil track fastened by one number twelve screw on each side at each stud with trimmed webs as required. A track below aligns with a minimum four-inch clearance and maintains a half-inch maximum tolerance with a one-and-a-half-inch dimension. The rim track is omitted from the drawing for clarity.
