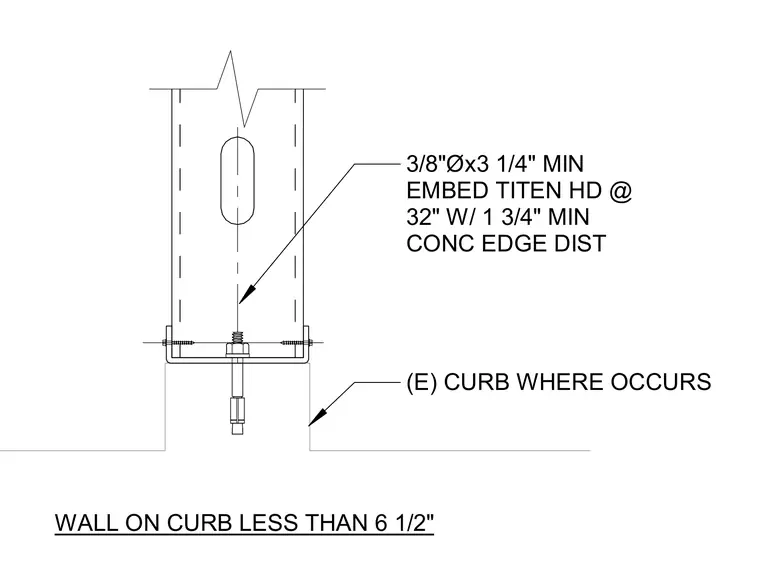

Three-eighths-inch diameter by three-and-one-quarter-inch minimum embedment Titen HD screw anchors secure the assembly at thirty-two inches on center. The anchor placement requires a minimum concrete edge distance of one and three-quarter inches. The connection bears onto an existing concrete curb where it occurs for walls measuring less than six and one-half inches.
3/8"Øx3 1/4" MIN EMBED TITEN HD @ 32" W/ 1 3/4" MIN CONC EDGE DIST (E) CURB WHERE OCCURS WALL ON CURB LESS THAN 6 1/2"
