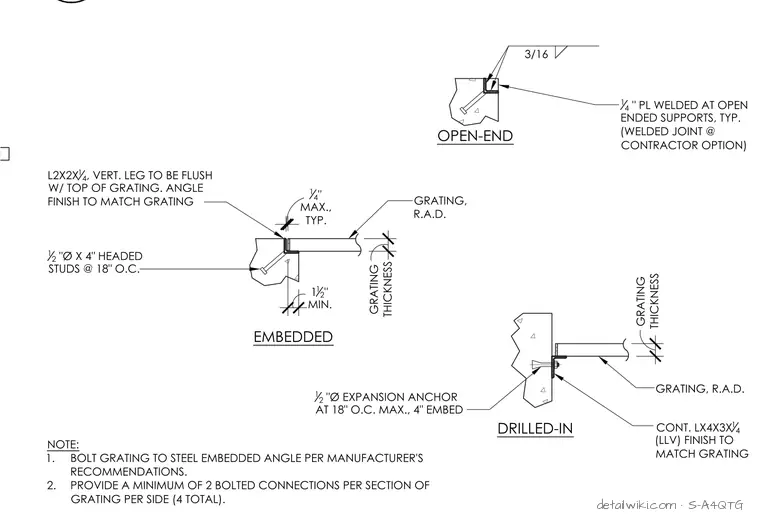

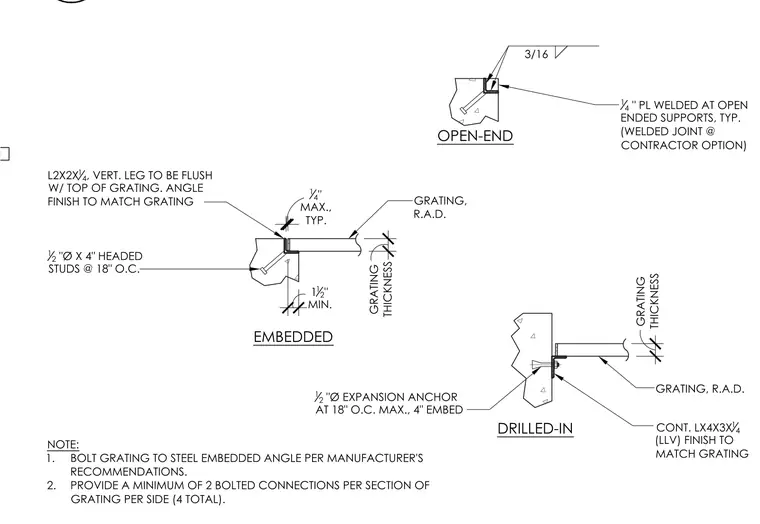

Metal grating rests on structural steel angles anchored to concrete edges via embedded angles with headed studs or continuous angles with drilled-in expansion anchors. The embedded option utilizes a continuous angle with a vertical leg flush with the top of the grating, anchored by one-half inch diameter by four inch long headed studs spaced at eighteen inches on center. The drilled-in option uses a continuous four by three by one-quarter inch structural steel angle secured with one-half inch diameter expansion anchors at eighteen inches maximum on center with four inch embedment. Open-end supports feature a one-quarter inch plate welded at the open-ended supports with a three-sixteenths inch fillet weld. Grating is bolted to the steel embedded angle with a minimum of two bolted connections per section of grating per side.
GRATING THICKNESS GRATING THICKNESS DRILLED-IN EMBEDDED OPEN-END NOTE: 1. BOLT GRATING TO STEEL EMBEDDED ANGLE PER MANUFACTURER'S RECOMMENDATIONS. 2. PROVIDE A MINIMUM OF 2 BOLTED CONNECTIONS PER SECTION OF GRATING PER SIDE (4 TOTAL). CONT. LX4X3X 1 4 (LLV) FINISH TO MATCH GRATING GRATING, R.A.D. GRATING, R.A.D. 14 " PL WELDED AT OPEN ENDED SUPPORTS, TYP. (WELDED JOINT @ CONTRACTOR OPTION) L2X2X 1 4 , VERT. LEG TO BE FLUSH W/ TOP OF GRATING. ANGLE FINISH TO MATCH GRATING 12 "Ø X 4" HEADED STUDS @ 18" O.C. 12 "Ø EXPANSION ANCHOR AT 18" O.C. MAX., 4" EMBED 14 " MAX., TYP. 1 1 2 " MIN. 3/16 ASI-1
